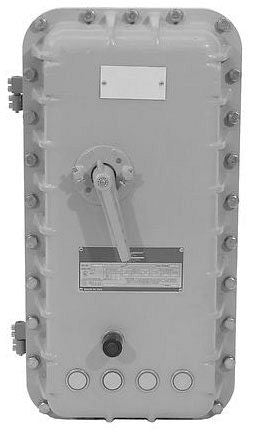

Appleton AEEB Circuit Breaker Enclosure

Product Description

The Appleton AEEB Circuit Breaker Enclosure is designed to protect circuit breakers in harsh environments. This unit is suitable for use in locations that require safety ratings such as Class I Division 1 and 2. The enclosure is made from copper-free sand cast aluminum, offering durability and safety. It features a gray epoxy powder coat for added protection against corrosion.

• Dust ignition proof and explosion proof ratings
• 3 inch hub size for easy installation
• CSA C22.2 approval for safe operation

Product Highlights

Provides protection for electrical components in demanding conditions.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer: Appleton

Technical Specifications

• UPC: 78138185621
• Enclosure Class: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Copper free sand cast aluminum
• Finish: Gray epoxy powder coated
• Used On: AE series non-interchangeable trip circuit breaker
• Approval: CSA C22.2
• Hub Size: 3 inches
• Breaker Voltage Rating: 600 VAC, 125/250 VDC
• Breaker Current Rating: 70 to 225 amperes
• Number of Breaker Poles: 3
• Sub-Category: Explosionproof Circuit Breaker Enclosure
