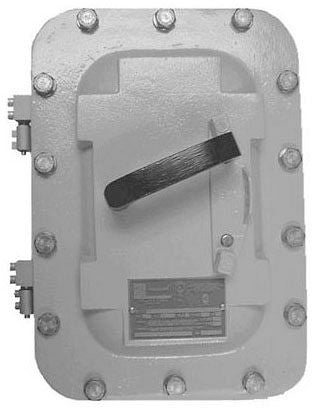

Appleton AEAB Circuit Breaker Enclosure

Product Description

The Appleton AEAB Circuit Breaker Enclosure is designed for reliable protection in hazardous locations. This enclosure is made from copper-free aluminum, featuring a gray epoxy powder-coated finish. It is suitable for use with AE series circuit breakers and meets UL 1203 and CSA C22.2 standards.

• Explosionproof and dust ignitionproof.
• Rated for 600 VAC and 125/250 VDC.
• Accommodates AE series circuit breakers.

Product Highlights

The AEAB enclosure offers robust protection against dust and water intrusion, ideal for various electrical applications in hazardous environments.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Material: Copper Free Aluminum

Technical Specifications

• UPC: 78138185602
• Approvals: UL 1203
• Breaker Voltage Rating: 600 VAC, 125/250 VDC
• Breaker Current Rating: 30 to 50 Ampere
• Number of Breaker Poles: 3
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7/9
• Overall Dimensions: 10.5 inches Width X 6.5 inches Depth X 15.3 inches Height
• Application: Hazardous Location, Overload and Short Circuit Protection, Control of Lighting and Power Circuits
• Made in USA: Yes
