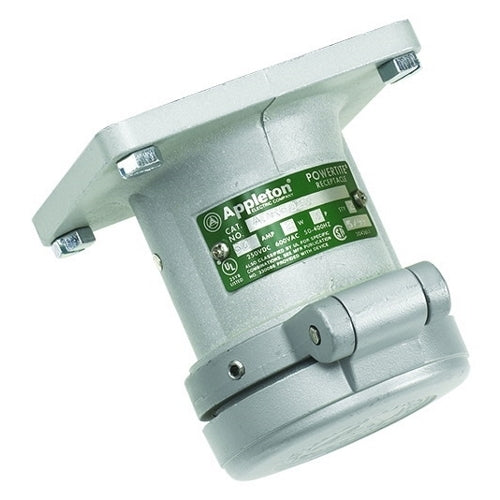

Appleton ADR6034 Powertite Grounding Style 2 Polarized Receptacle 60 Amp 600 Volt AC/250 Volt DC 4-Pole 3-Wire

Product Description

The Appleton ADR6034 is a Powertite Grounding Style 2 polarized receptacle designed for high-performance and safety in demanding environments. This receptacle supports four poles and three wires, making it suitable for various applications where reliable electrical connections are required.

• Rated for 60 amps and 600 volts alternating current or 250 volts direct current.
• Constructed from copper-free aluminum with a weatherproof design for outdoor and harsh conditions.
• Compatible with ACP6034BC metallic and NMACP6034BC nonmetallic clamping ring plugs.

Product Highlights

This receptacle is engineered for use in industrial settings, ensuring effective power distribution for portable and fixed electrical equipment.

Product Information

Standard Information

• Brand: Appleton
• Catalog Number: ADR6034

Technical Specifications

• Amperage Rating: 60 AMP
• Voltage Rating: 600 VAC at 50 - 400 HZ, 250 VDC
• Number of Poles: 4
• Number of Wires: 3
• Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
• Material: Copper-free aluminum
• Connection: Pressure wire terminal
• Application: For ACP6034BC metallic and NMACP6034BC nonmetallic clamping ring plugs
• NEMA Rating: 3, 3R, 4, 4X
• Country of Origin: Mexico
• Temperature Rating: -40 to 107 degrees Celsius
