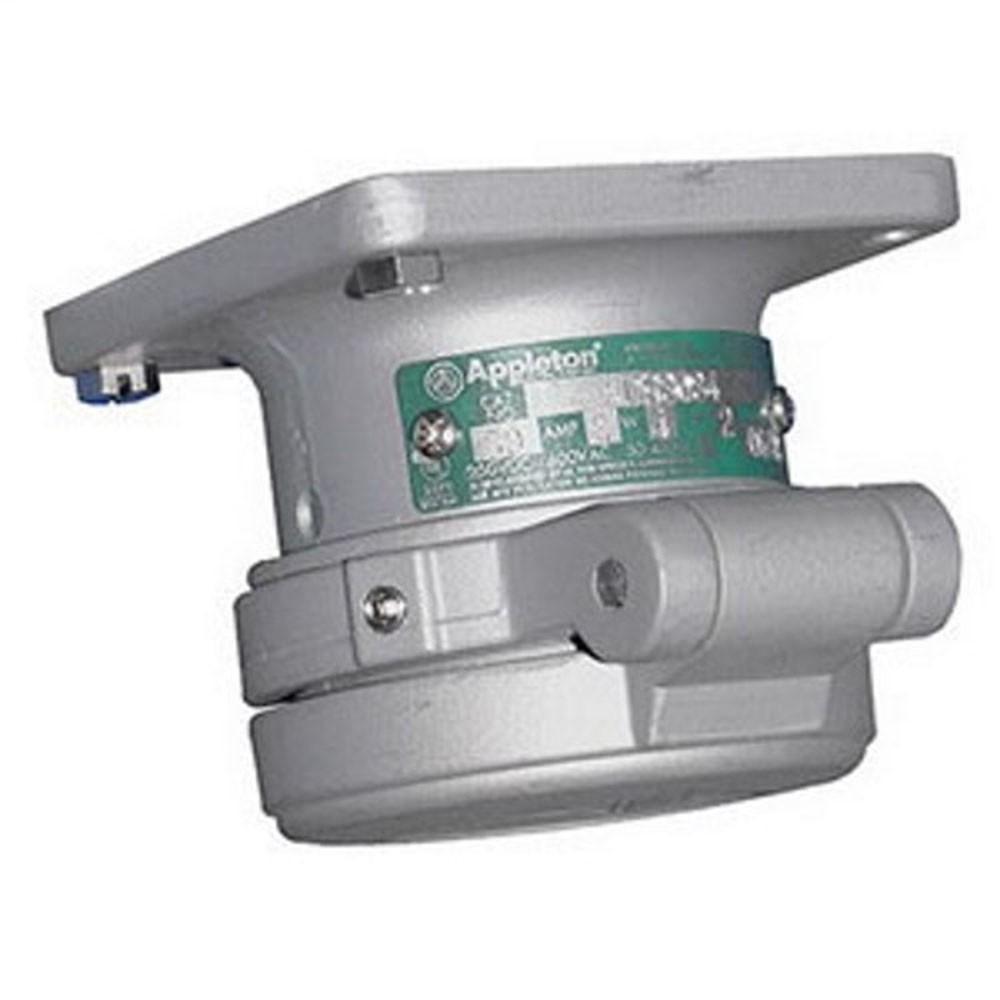

Appleton ADR6033RS Powertite Reverse Service Pin and Sleeve Receptacle 60 A (3-Pole/3-Wire) ADR6033-RS

Product Description

The Appleton ADR6033RS is a Powertite grounding style 1 pin-and-sleeve receptacle rated 60 A and 600 VAC / 250 VDC for reverse service and generator applications. It is constructed of copper-free aluminum with pressure wire terminals and recessed insulating blocks, configured as a 3-pole, 3-wire device supporting 6–2 AWG (building) and 6–4 AWG (extra flex). The enclosure is weatherproof (NEMA 3/3R/4/4X) and suitable for rough usage environments.

• 60 A rating; 600 VAC (50–400 Hz) and 250 VDC; 3 poles, 3 wires
• Copper-free aluminum housing with pressure wire terminals; wire recess diameter 5/16 in
• Weatherproof NEMA 3/3R/4/4X enclosure; designed for reverse service (generator) applications

Product Highlights

Powertite grounding style 1 receptacle, 3P/3W, 60 A, 600 VAC/250 VDC, copper-free aluminum, pressure terminal, NEMA 3/3R/4/4X

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ADR6033RS
• Country of Origin: Mexico

Technical Specifications

• Brand: Appleton
• Manufacturer Part Number: ADR6033RS
• Product Series: Powertite
• Item Type: Grounding Style 1 Receptacle
• Description: Reverse service pin-and-sleeve receptacle
• Amperage Rating: 60 A
• Voltage Rating: 600 VAC at 50-400 Hz; 250 VDC
• Frequency: 50-400 Hz
• Horsepower: 30 hp
• Number of Poles: 3
• Number of Wires: 3
• Wire Size: 6 - 2 AWG (building), 6 - 4 AWG (extra flex)
• Terminal Type: Pressure wire terminal
• Connection: Receptacle (pin-and-sleeve)
• Material: Copper-free aluminum (0.4% maximum copper)
• Mounting: Box
• Body Finish: Natural finish / epoxy powder coat
• NEMA Rating: 3, 3R, 4, 4X
• Temperature Rating: -40 to 107 °C
• Operating Temperature: -40 to 225 °F
• Dimensions: 4.88 in H x 4.25 in W
• Weight: 1 lb
• Wire Recess Diameter: 5/16 in
• Compatible Plug: ACP6033BC (metallic clamping ring plug)
• Standards / Certifications: UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
• Country of Origin: Mexico
• UPC: 781381710893
• GTIN: 00781381710893
• Special Features: Reverse service (generator applications); shell-only grounding style; natural finish glass-filled polyester insulating blocks; weatherproof spring door (brass with beryllium copper springs); rough-usage construction
