Product Description

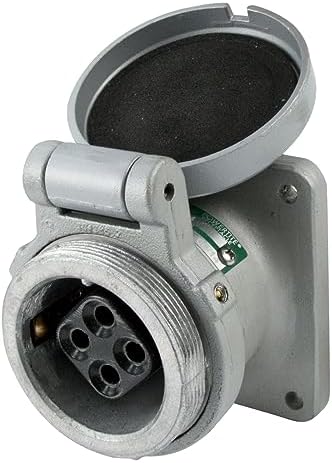

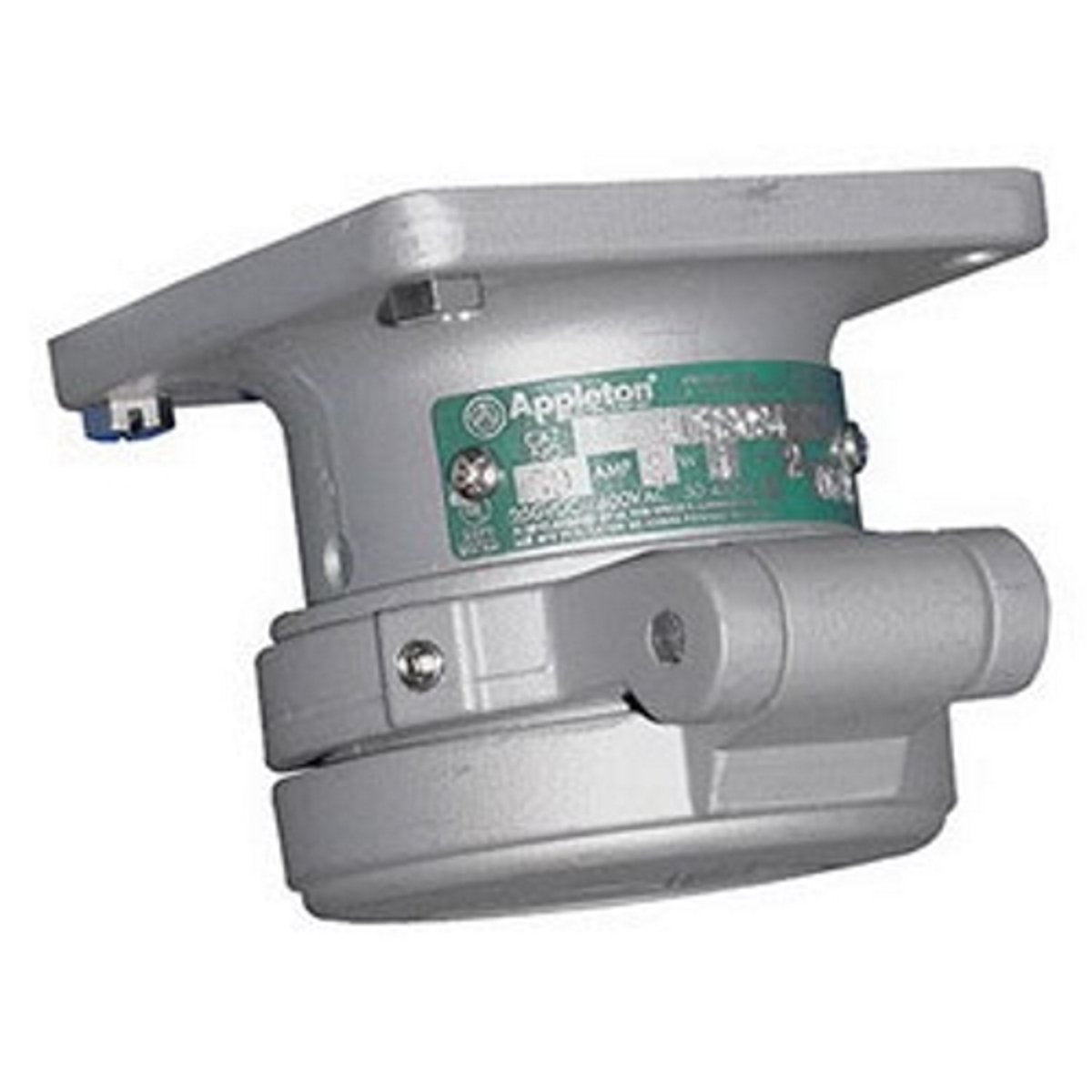

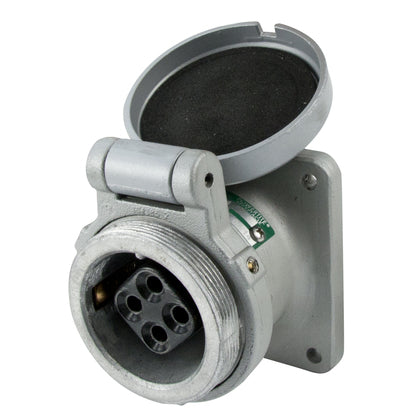

The APPLETON ADR3044 Powertite Grounding Style 1 Receptacle is designed to supply power to portable or fixed electrical equipment. It is rated for 30 AMP, 600 VAC at 50 - 400 HZ, and 250 VDC. This 4-pole, 4-wire receptacle features a pressure wire terminal and is constructed from copper-free aluminum.
- Amperage Rating: 30 AMP
- Voltage Rating: 600 VAC at 50 - 400 HZ, 250 VDC
- Constructed from Copperfree Aluminum
Product Highlights
This receptacle is ideal for shipping docks, ports, and other ship-to-shore applications. It is suitable for use in locations where a weatherproof enclosure is required.
Product Information
Standard Information
-
Brand: APPLETON
-
Manufacturer Part Number: ADR3044
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: ADR3044
-
Manufacturer: Appleton Electric
-
Brand: Appleton
-
Sub Brand: Powertite
-
Country of Origin: Mexico
-
Made in USA: No
-
Amperage Rating: 30 A
-
Application: For ACP3044BC Metallic Clamping Ring Plug
-
Connection: Pressure Wire Terminal
-
Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
-
Mounting: Box
-
NEMA Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
-
Number of Poles: 4
-
Number of Wires: 4
-
Phase: 3
-
Special Features: Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 9/32 IN; Receptacle is NEMA 4X rated when screw cap is closed when the receptacle is not in use; Weatherproof spring door, brass with beryllium copper springs
-
Standard & Approvals: CSA C22.2 No. 182.1 065179 Certified, NEMA FB11, RoHS Complaint, UL 1682, UL 1686, UL 50E, UL E145916, UL E145917 Listed
-
UPC: 781381186377
-
GTIN: 00781381186377
-
Item Type: Grounding Style 1 Receptacle
-
Temperature Rating: -40 to 107 DEG C
-
Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC
-
Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex)
-
Type: Polarized
-
Constructional Feature: Weatherproof
-
Current Rating: 30 Ampere
-
Grounding Style: 1, Shell
-

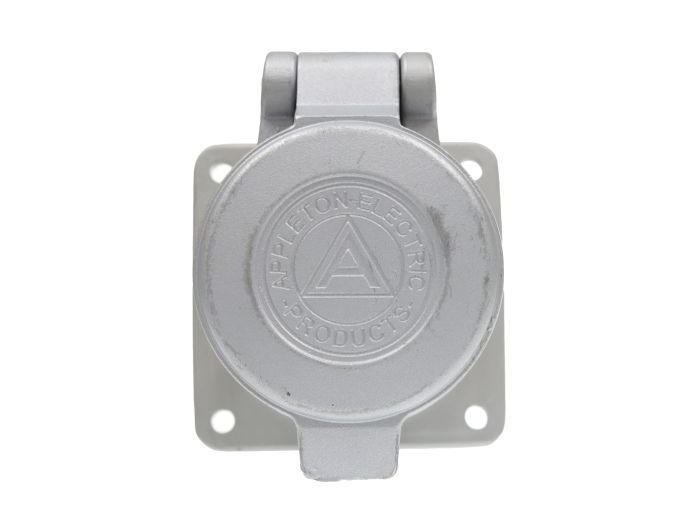

Door Type: Spring Door, Screw Cap
-
Grade: Shipping
-
Approval: UL1682/1686/50E, CSA C22.2
-
Series: ADR
-
Terminal Type: Pressure Wire, Pressure Wired
-
Frequency Rating: 50 - 400 Hz
-
Horsepower: 20 hp
-
Operating Temperature: -13-104 °F
