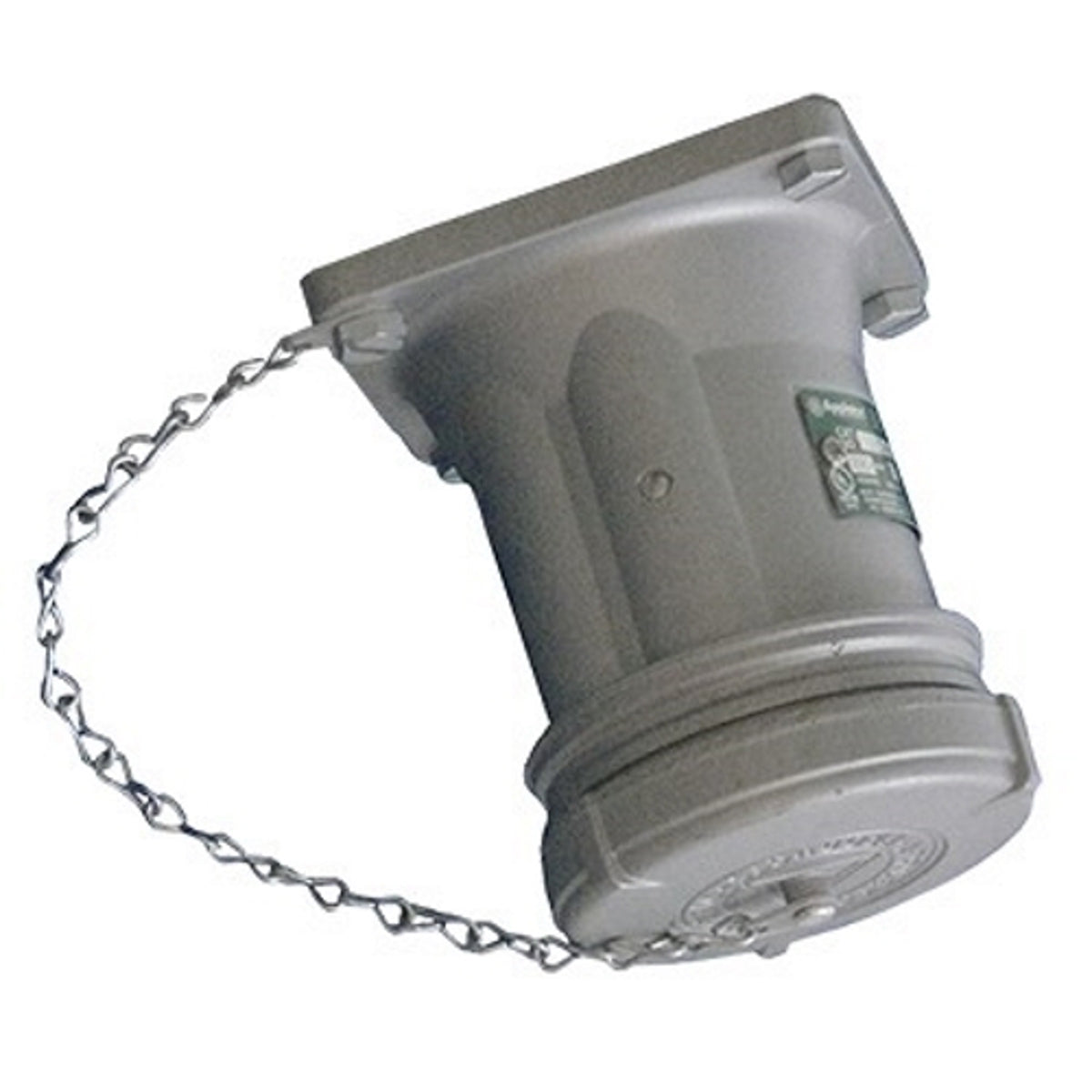

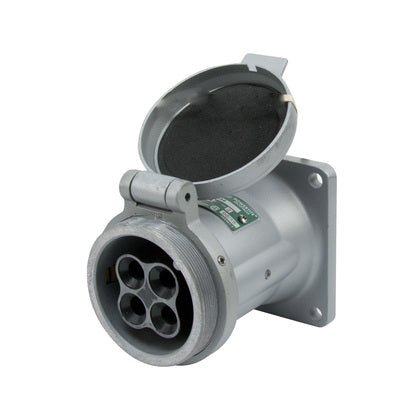

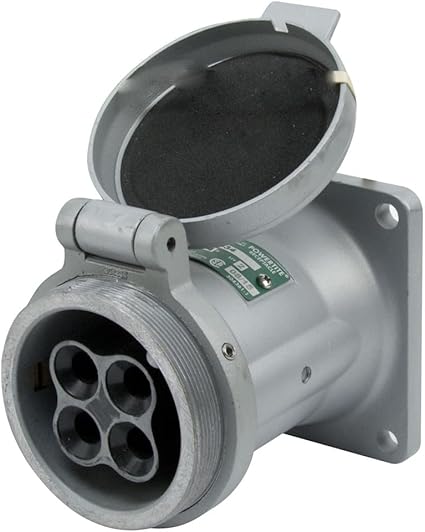

Appleton ADR1034 Powertite Grounding Style 2 Polarized Receptacle 100 Amp 4-Pole 3-Wire

Product Description

The APPLETON ADR1034 Powertite Grounding Style 2 Receptacle is a 100 AMP, 600 VAC/250 VDC, 4-pole, 3-wire receptacle with a pressure wire terminal. Designed for supplying power to portable or fixed electrical equipment, it is ideal for shipping docks and ship-to-shore applications. It is suitable for locations requiring a weatherproof enclosure.

• Grounding style: Shell and extra pole
• Designed to supply power to portable or fixed electrical equipment
• Suitable for use in locations where a weatherproof enclosure is required

Product Highlights

This receptacle features rough usage construction and natural finish glass filled polyester insulating blocks. It is NEMA 4X rated when the screw cap is closed.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ADR1034
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ADR1034
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: Powertite
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 100 Amp
• Application: For ACP1034CD Clamping Ring Plug
• Connection: Pressure Wire Terminal
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• Mounting: Box
• NEMA Rating: 3, 3R, 4, 4X
• Number of Poles: 4
• Number of Wires: 3
• Phase: 3
• Special Features: Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 0.391 IN; Receptacle is NEMA 4X rated when screw cap is closed when the receptacle is not in use; Weatherproof spring door, brass with beryllium copper springs
• Standard: UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
• UPC: 781381186292
• GTIN: 00781381186292
• Item Type: Grounding Style 2 Receptacle
• Temperature Rating: -40 To 107 DEG C
• Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC
• Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex)
• Type: Polarized
• Constructional Feature: Weatherproof
• Current Rating: 100 Ampere
• Grounding Style: 2, Shell, Extra Pole
• Door Type: Spring Door, Screw Cap
• Grade: Shipping
• Approval: UL1682/1686/50E, CSA C22.2
• Frequency Rating: 50/400 Hz
• Horsepower: 40 hp
• Manufacturer Name: Emerson Electric
• Series: ADR
• Terminal Type: Pressure Wire
• Voltage: 600 Volts
• Item Package Quantity: 1
• Included Components: ADR1034
• Batteries Included?: No
• Batteries Required?: No
• ASIN: B008KMLEY6
