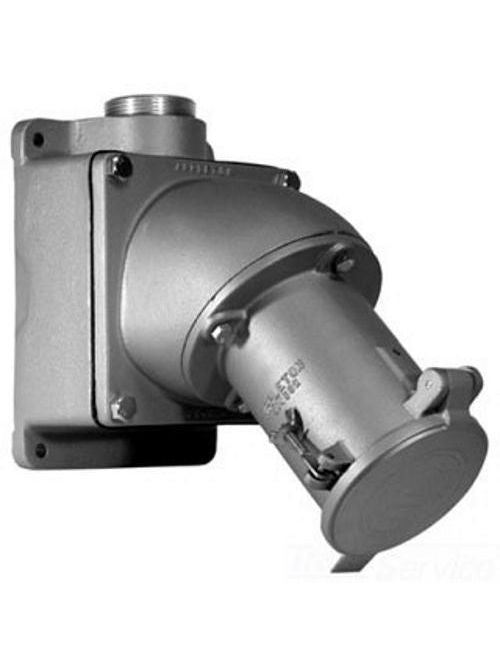

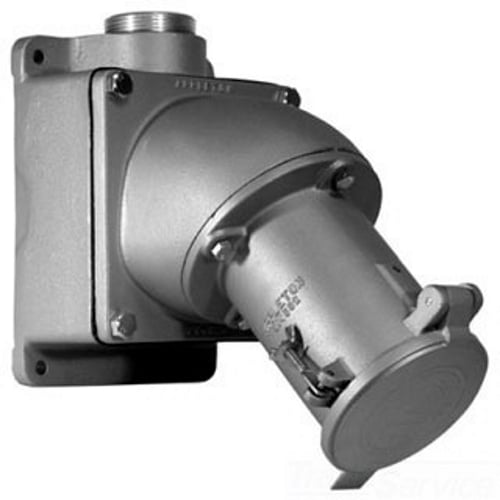

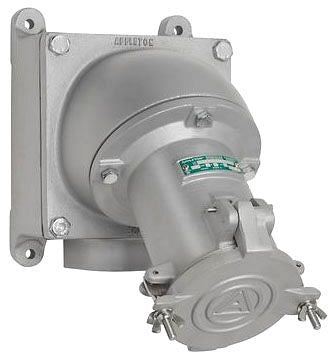

Appleton ADJA20034200RS 200 Amp 3-Wire 4-Pole Flip Cover Receptacle

Product Description

The Appleton ADJA20034200RS is a 200 Amp, 3-Wire, 4-Pole receptacle designed for high-demand applications. Made by Appleton Electric, it features a Powertite grounding style with an AJA mounting box, making it suitable for various electrical setups.

• Compatible with AP20034E Plug.
• Temperature range of -40 to 107 degrees Celsius.
• Weatherproof design for use in challenging environments.

Product Highlights

This receptacle is suitable for use in industrial applications, including motor generators, welders, and pumps. It is rated for 600 VAC at 50 - 400 Hz and can also handle 250 VDC, making it versatile for both AC and DC systems.

Product Information

Standard Information

• Brand: Appleton
• Material: Copper-free aluminum

Technical Specifications

• MPN: ADJA20034200RS
• Amperage Rating: 200 A
• Number of Poles: 4
• Number of Wires: 3
• Voltage Rating: 600 VAC / 250 VDC
• Wire Size: 2/0 AWG - 250 MCM
• Temperature Rating: -40 to 107 degrees Celsius
• NEMA Rating: 3, 3R, 4, 4X
