Appleton ACV-50 Flex Conduit Connector 1/2 in 90 Degree

Product Description

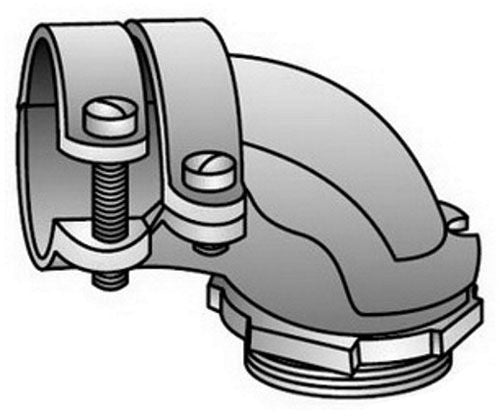

The APPLETON ACV-50 is a 1/2 inch, 90-degree flexible conduit connector designed for securing flexible metallic conduit (FMC) to electrical enclosures, junction boxes, and panels. The two-screw design clamps firmly onto the conduit, providing a secure mechanical connection at the termination point. This connector is suited for electrical installations where a right-angle transition is needed between flexible conduit and a fixed enclosure. Licensed electricians and electrical contractors install this type of fitting during rough-in and finish wiring on commercial and residential projects.

This fitting is used wherever flexible metallic conduit must transition at a 90-degree angle into a knockout or enclosure entry. Common applications include equipment connections, motor terminations, and control panel wiring where rigid conduit is not practical and a 90-degree offset is required. The two-screw clamp style is standard for FMC applications and allows secure installation without specialized tooling.

Key Features

• 90-degree body angle for right-angle FMC terminations at enclosures and panels
• 1/2 inch trade size fits standard half-inch flexible metallic conduit
• Two-screw clamp secures conduit mechanically without crimping or deforming the jacket
• Compact profile at 0.16 pounds keeps installation weight minimal

Compatibility

Designed as an OEM-style fitting for use with 1/2 inch flexible metallic conduit in standard electrical enclosure knockouts.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for flexible conduit terminations. De-energize all circuits before working on any enclosure or panel where this fitting will be installed. Insert the conduit into the connector body and tighten both screws evenly to achieve a secure mechanical grip. Avoid over-tightening, which can distort the conduit or fitting body.

Technical Specifications

• Trade Size: 1/2 inch
• Body Angle: 90 degrees
• Clamp Type: 2-screw
• Package Dimensions (L x W x H): 6.9 inches x 5.1 inches x 0.16 inches
• Weight: 0.16 pounds
• UPC: 78312602035

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ACV-50
