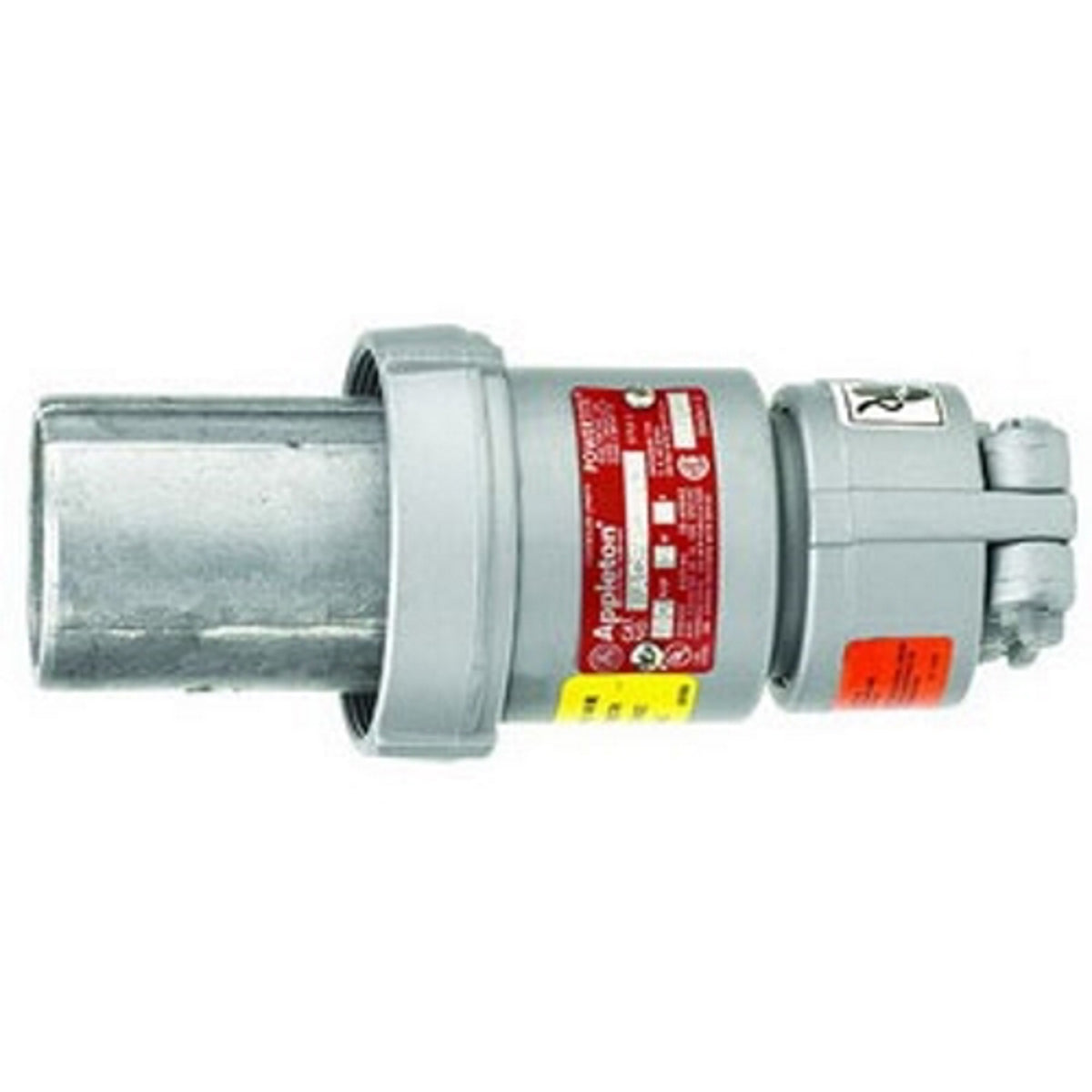

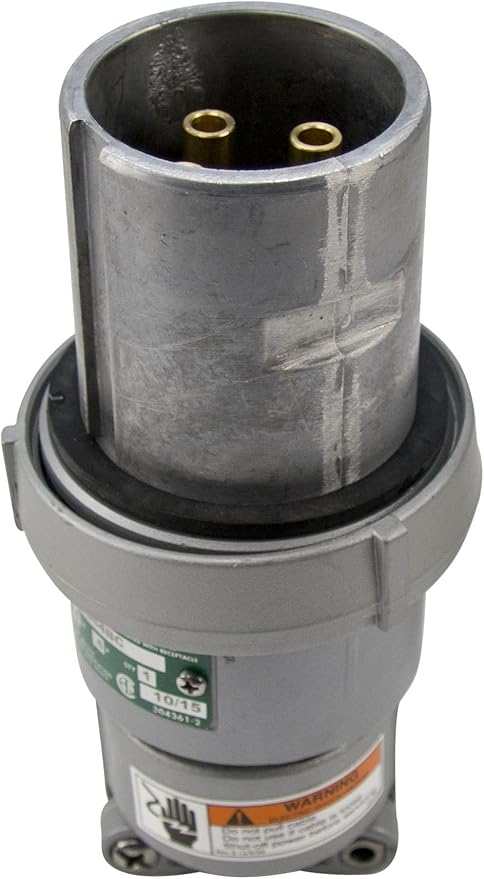

Appleton ACP6044BCRS Powertite Style 1 Reverse Service Pin and Sleeve Clamping Ring Plug 60 AMP 600/250 Volt AC/DC 4-Pole 4-Wire

Product Description

The APPLETON ACP6044BCRS Powertite grounding style 1 metallic clamping ring plug is designed for reverse service and generator applications. Rated at 60 AMP and 600 VAC at 50 - 400 HZ, 250 VDC, this 4-pole, 4-wire plug is ideal for supplying power to portable or fixed electrical equipment. It features a copperfree aluminum construction and is suitable for weatherproof enclosures.

• Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus
• Ideal for use on shipping docks, ports and other ship to shore applications
• Locking screw and slot prevents plug cable collar from backing off

Product Highlights

This Appleton Powertite clamping ring plug ensures a secure and reliable connection for demanding applications. Its robust construction and weatherproof design make it suitable for various industrial environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ACP6044BCRS
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ACP6044BCRS
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: Powertite
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 60
• Application: Compressor, Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding
• Connection: Pressure Wire Terminal
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• NEMA Rating: 3, 3R, 4, 4X
• Number of Poles: 4
• Number of Wires: 4
• Phase: 3
• Special Features: For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 5/16 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
• Standard: UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
• UPC: 781381710978
• GTIN: 00781381710978
• Item Type: Grounding Style 1 Metallic Clamping Ring Plug
• Environmental Conditions: Temperature Rating: -40 To 107 DEG C
• Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC
• Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
• Constructional Feature: Weatherproof
• Current Rating: 60 Ampere
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.375 Inch
• Contact Material: Brass
• IP/NEMA Rating: 4X, 4, 3R, 3
• Type: Plug
