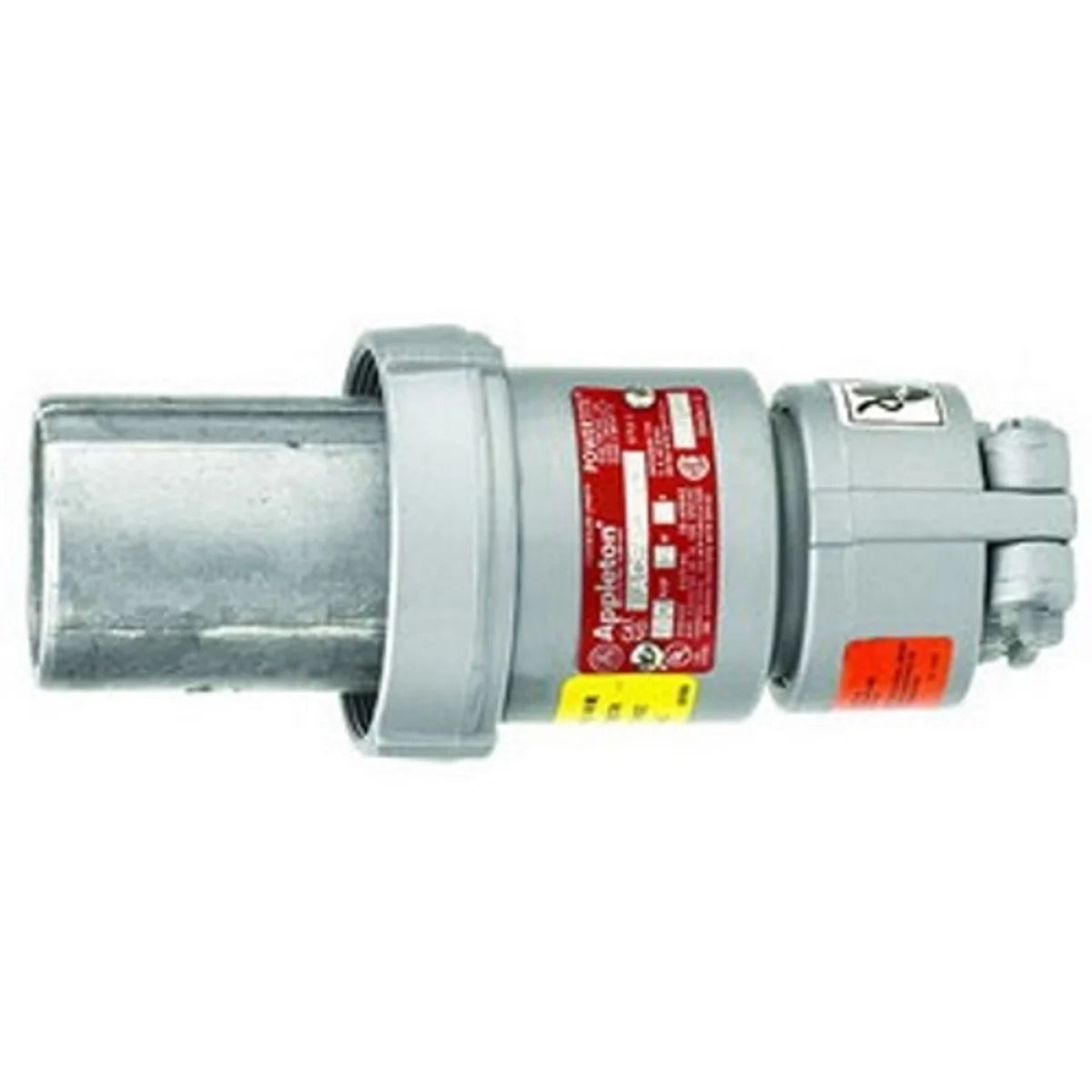

Appleton ACP6034BC Powertite Grounding Style 2 Clamping Ring Plug 60 Amp 600 Volt AC at 50 - 400 Hz/250 Volt DC 4-Pole 3-Wire 3 Phase

Product Description

The Appleton ACP6034BC is a Powertite grounding style 2 metallic clamping ring plug designed for use in various electrical applications. This model features a four-pole, three-wire configuration suitable for amping 60 amps and voltages up to 600 VAC at 50 to 400 Hertz, as well as 250 VDC. Its construction allows for a secure connection in environments where safety and performance are critical.

• Rated for 60 amps and 600 volts AC
• Compatible with 6 - 2 AWG (building) and 6 - 4 AWG (extra flex) wire sizes
• Designed for tough working conditions including weatherproof environments

Product Highlights

This plug is ideal for powering portable or fixed electrical equipment, including motor generators, welders, pumps, and cellular relay stations. Its rugged design and grounding features make it suitable for use in shipping docks and other challenging applications.

Product Information

Standard Information

• Catalog Number: ACP6034BC
• Manufacturer: Appleton Electric

Technical Specifications

• Amperage Rating: 60
• Voltage Rating: 600 VAC at 50 - 400 HZ, 250 VDC
• Number of Poles: 4
• Number of Wires: 3
• Connection Type: Pressure Wire Terminal
• Material: Copperfree Aluminum
• Environmental Conditions: Temperature Rating -40 to 107 Degrees Celsius
• NEMA Rating: 3, 3R, 4, 4X
