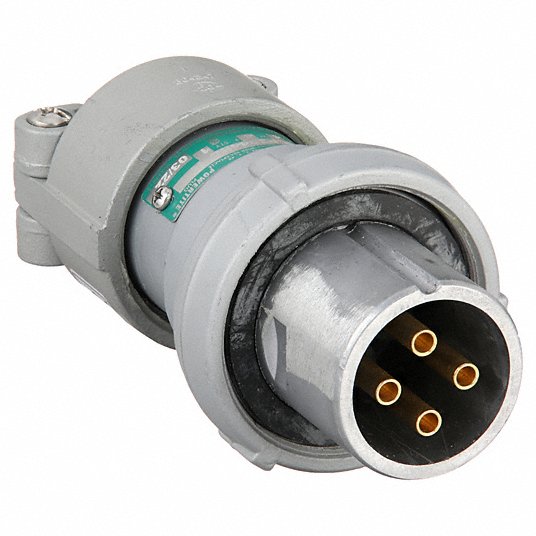

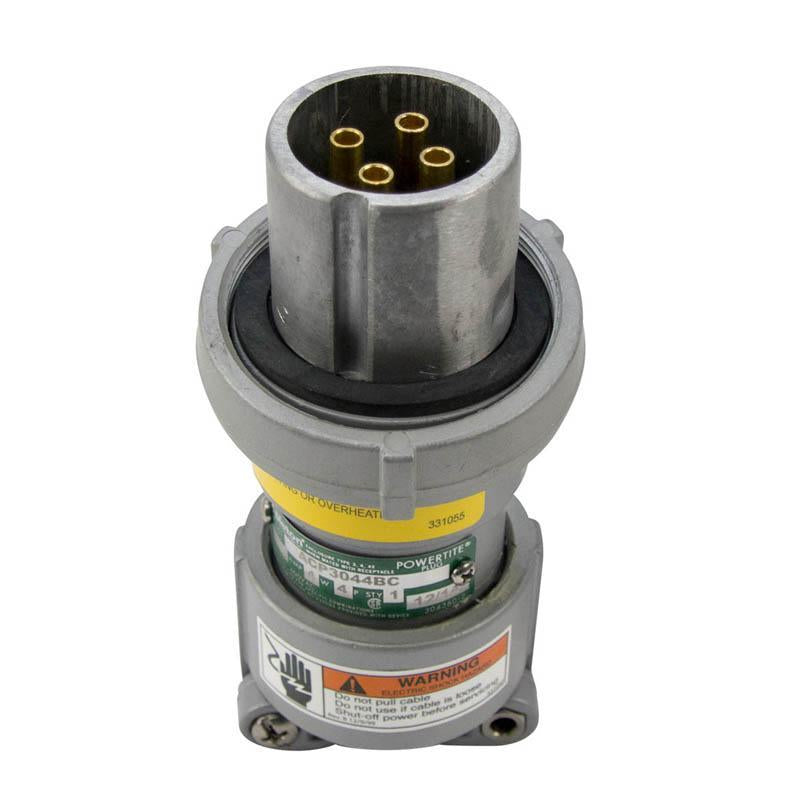

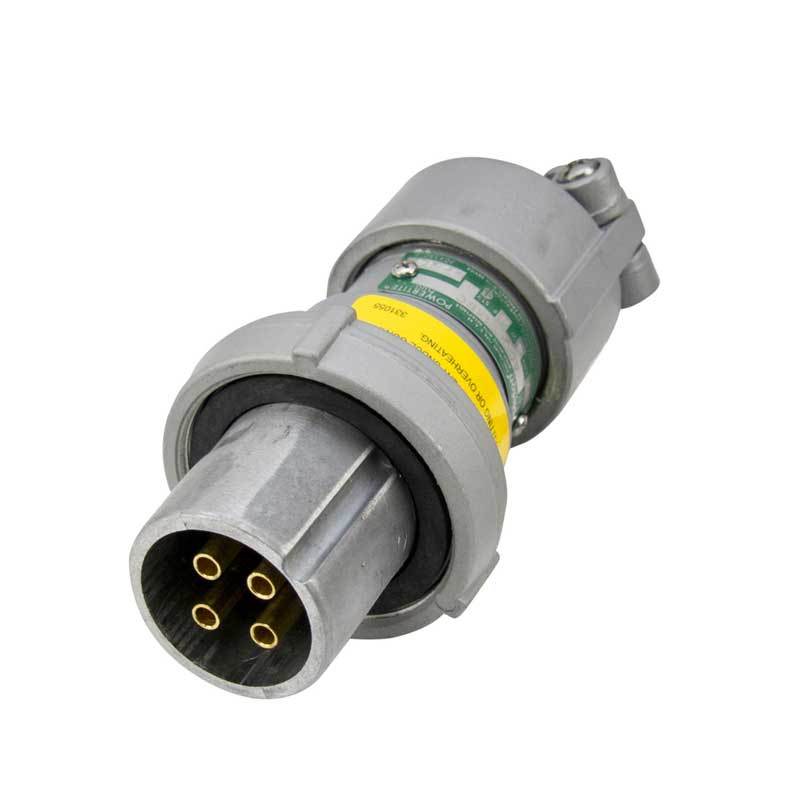

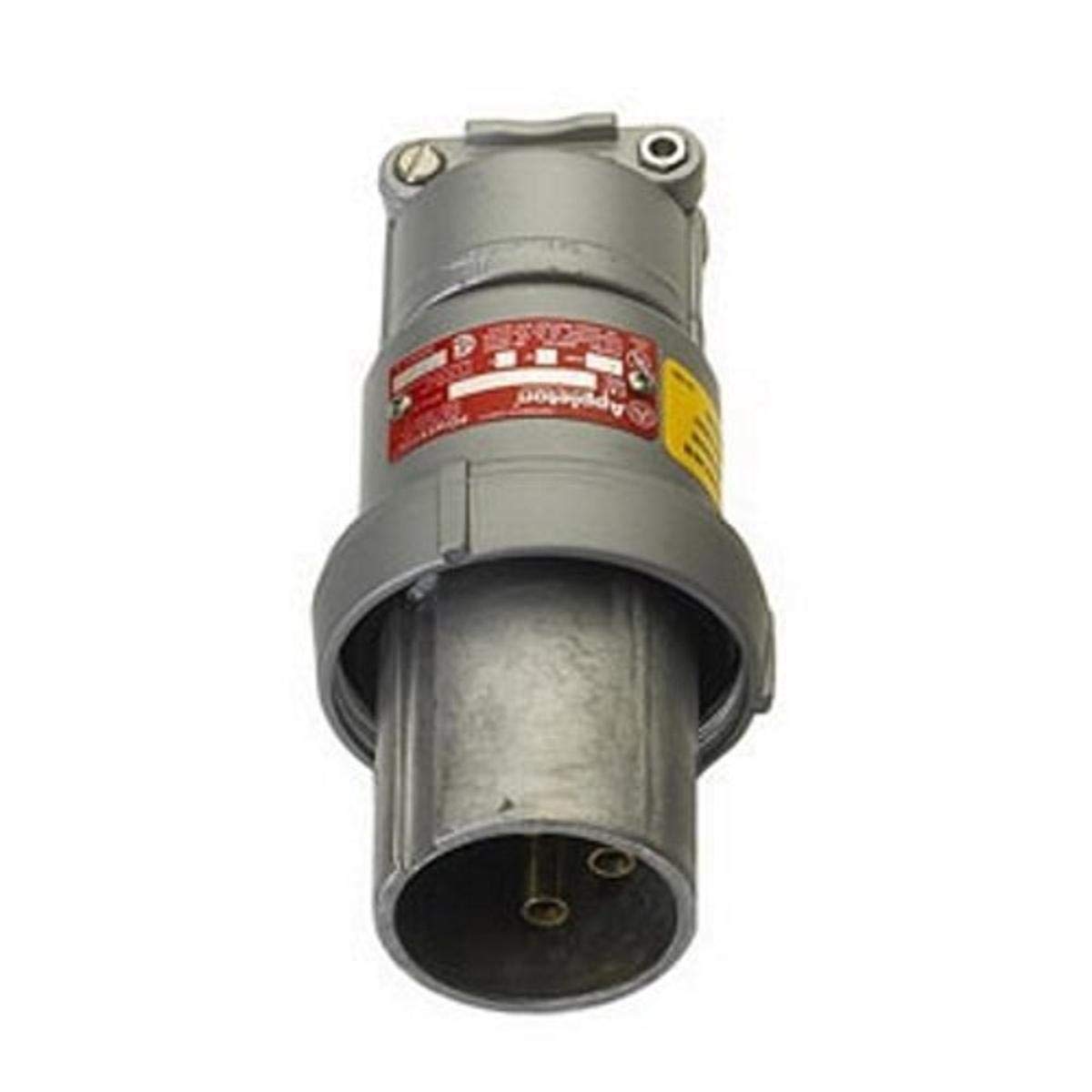

Appleton ACP3044BC Powertite Grounding Style 1 Shell Only Metallic Clamp Ring Plug 30 AMP 4-Pole, 4-Wire

Product Description

The APPLETON ACP3044BC Powertite grounding style 1 metallic clamping ring plug is designed to supply power to portable or fixed electrical equipment. Rated at 30 AMP and 600 VAC at 50 - 400 HZ/250 VDC, this 4-pole, 4-wire plug is suitable for use in locations where a weatherproof enclosure is required.

• Grounding style: Shell only
• Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus
• Ideal for use on shipping docks, ports and other ship to shore applications

Product Highlights

The APPLETON ACP3044BC plug features rough usage construction and natural finish glass filled polyester insulating blocks. It has a locking screw and slot that prevents the plug cable collar from backing off.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ACP3044BC
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ACP3044BC
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: Powertite
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 30
• Application: For ADR3044 Receptacle And ARC3044BC Connector Body
• Connection: Pressure Wire Terminal
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• NEMA Rating: 3, 3R, 4, 4X
• Number of Poles: 4
• Number of Wires: 4
• Phase: 3
• Special Features: Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 9/32 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
• Standard: UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
• UPC: 781381440431
• GTIN: 00781381440431
• Item Type: Grounding Style 1 Metallic Clamping Ring Plug
• Environmental Conditions: Temperature Rating: -40 To 107 DEG C
• Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC
• Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex)
• Minimum Cable Outer Diameter: 0.39 Inch
• Maximum Cable Outer Diameter: 1.375 Inch
• Contact Material: Brass
• Current Rating: 30 A
• Face Diameter: 1.86 in
• Features: Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing; Neoprene Bushing Compressed by Cable Collar Prevent Entrance of Water
• For Maximum Cable Diameter: 1.125 in
• For Minimum Cable Diameter: 0.5 in
• Grounding: Grounded
• Grounding Style: Style 1
• Housing Material: Copper-Free Aluminum
• Housing Material Finish: Epoxy Coat with Powder Finish
• Insulation Material: Fiberglass-Reinforced Polyester
• Maximum Operating Temperature: 104 °F
• Maximum Wire Size: 8 AWG
• Minimum Operating Temperature: -13 °F
• Minimum Wire Size: 10 AWG
• NEMA Enclosure Rating: 3; 3R; 4; 4X
• Outside Diameter: 3.13 in
• Overall Length: 6 in
• Polarized: No
• Resistance Properties: Heat Resistant; Fire Resistant
• Reverse Service: No
• Switch Rated: No
• Wire Connection Type: Wire Leads
• Number of Poles & Wires: 4 Pole / 4 Wire
• Rated Voltage: 250V DC; 600V AC
• UNSPSC: 39121402
