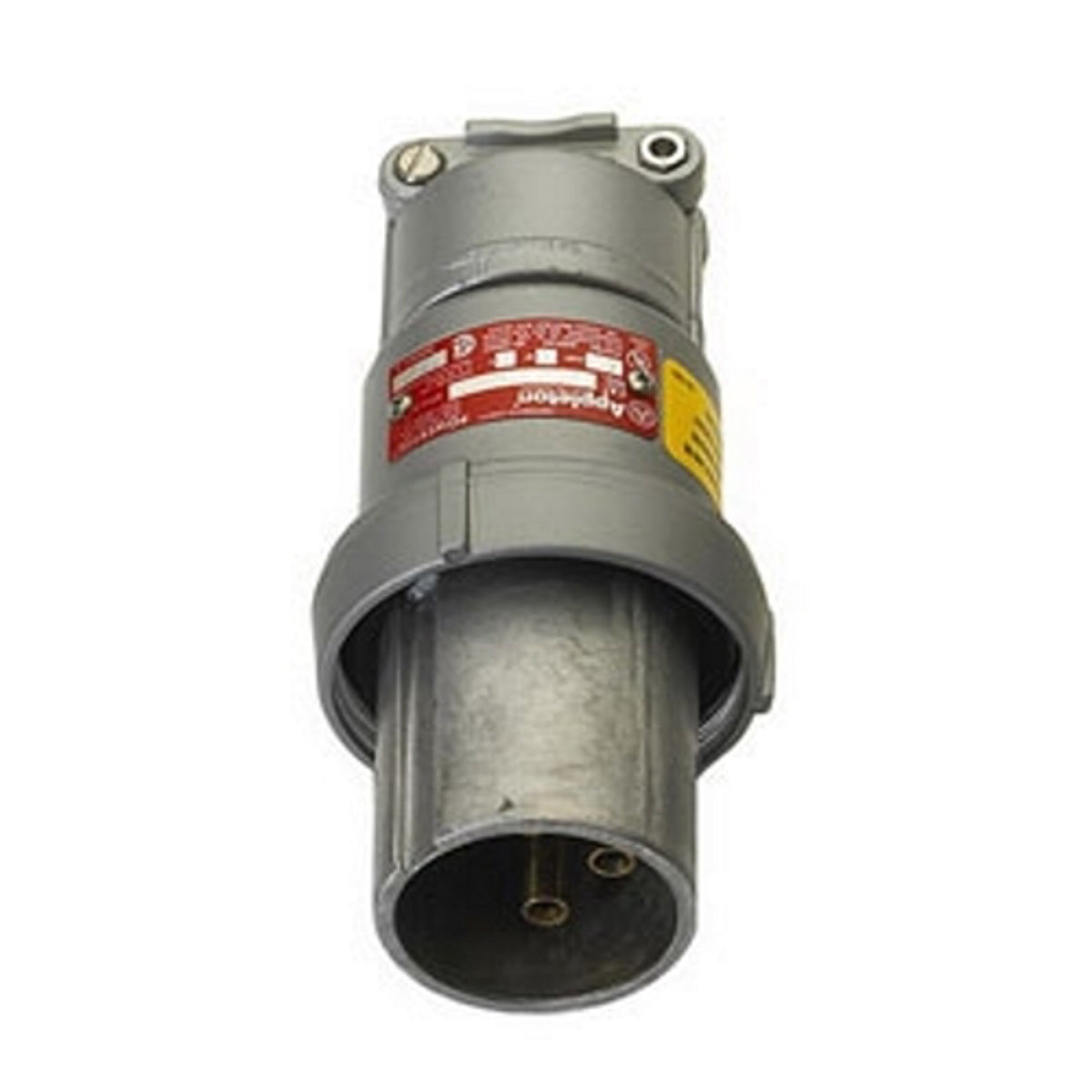

Appleton ACP3034BC 30 Amp 600 VAC 250 VDC 4-Pole 3-Wire Copper Free Aluminum Pin and Sleeve Plug

Product Description

The Appleton ACP3034BC is a 30 Amp, 600 VAC, 250 VDC pin and sleeve plug. It features a four-pole, three-wire design with copper-free aluminum housing, suitable for various industrial applications.

• Interlocked disconnect switch for safe operation in hazardous environments.
• Compatible with Powertite plugs ensuring secure connections.
• Durable construction suitable for use in harsh conditions.

Product Highlights

This product is designed for reliable power supply to portable and fixed equipment such as motors, generators, and compressors.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Amperage Rating: 30 Amp
• Voltage Rating: 600 VAC at 50 - 400 HZ / 250 VDC
• Material: Copper-free aluminum
• Number of Poles: 4
• Number of Wires: 3
• Environmental Conditions: -40 to 107 C
• Connection Type: Pressure Wire Terminal
• Application: For ADR3034 receptacle and ARC3034BC connector body
