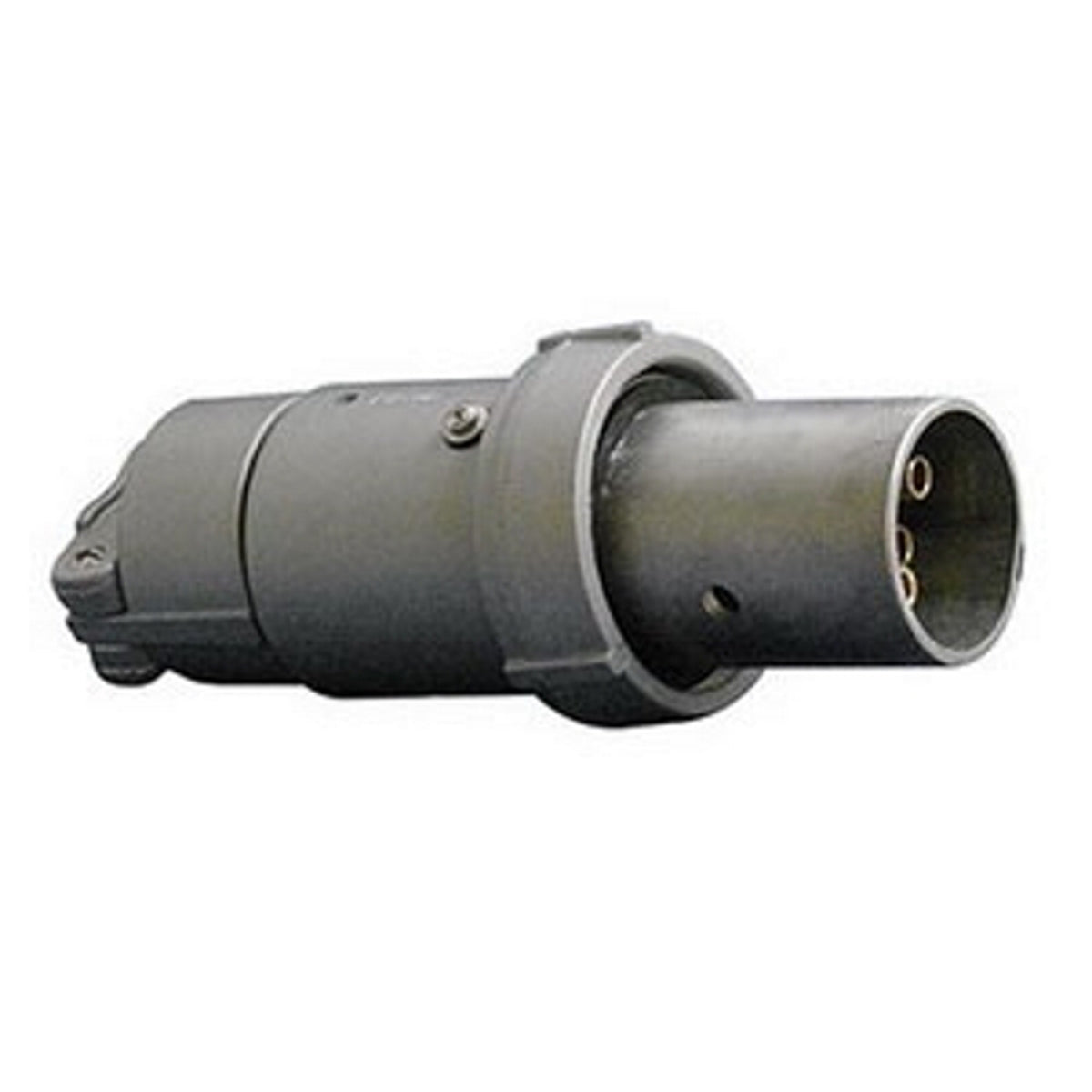

Appleton ACP1044CD Powertite Grounding Style 1 Shell Only Clamp Ring Plug 100 Amp, 600 Volt AC at 50 - 400 Hz/250 Volt DC, 4-Pole, 4-Wire, 3 Phase, Pressure Wire Terminal

Product Description

The Appleton ACP1044CD is a Powertite grounding style one shell only clamp ring plug. This device is designed for high performance in demanding electrical applications.

• Rated for 100 Amps and 600 Volts AC.
• Suitable for 4-pole, 4-wire configurations.
• Constructed with copper-free aluminum for durability.

Product Highlights

This plug is ideal for supplying power to portable and fixed electrical equipment, including generators and pumps. It is designed for use in harsh environments and is NEMA rated for safety.

Product Information

Standard Information

• Brand: Appleton
• MPN: ACP1044CD

Technical Specifications

• Number of Poles: 4
• Number of Wires: 4
• Amperage Rating: 100
• Voltage Rating: 600 VAC at 50 - 400 HZ, 250 VDC
• Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex)
• Connection Type: Pressure Wire Terminal
• Material: Copperfree Aluminum
• NEMA Rating: 3, 3R, 4, 4X
• Temperature Rating: -40 to 107°C
