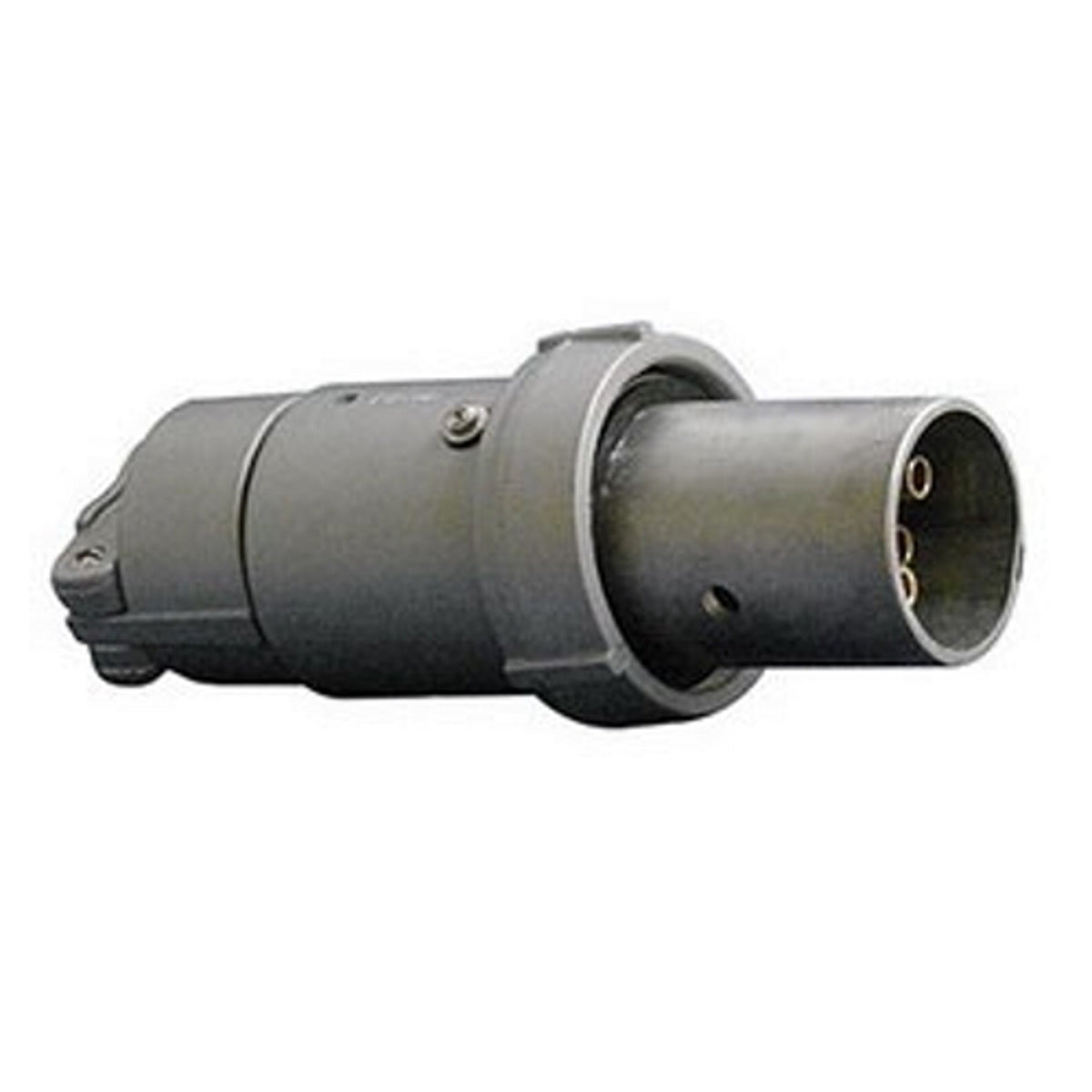

Appleton ACP1034CD Powertite; Shell and Extra Pole Only Grounding Style 2 Clamping Ring Plug; 100 Amp, 600 Volt AC at 50 - 400 Hz/250 Volt DC, 4-Pole, 3-Wire, 3 Phase, Pressure Wire Terminal

Product Description

The Appleton ACP1034CD is a Powertite Shell and Extra Pole Only Grounding Style 2 Clamping Ring Plug. This plug is designed for heavy-duty use in a variety of applications. It features four poles and three wires, allowing for efficient electrical connection in demanding environments.

• Rated for 100 Amps and 600 Volts AC/250 Volts DC
• Compatible with wire sizes from four to one AWG
• Constructed from copper-free aluminum for durability

Product Highlights

This clamping ring plug is suitable for powering portable or fixed electrical equipment such as motor generator units, welders, compressors, and more. Its robust design makes it ideal for shipping docks and areas requiring weatherproof enclosures.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Brand: Appleton
• Catalog Number: ACP1034CD

Technical Specifications

• Amperage Rating: 100 Amps
• Voltage Rating: 600 VAC at 50 - 400 Hz, 250 VDC
• Number of Poles: 4
• Number of Wires: 3
• Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex)
• Material: Copperfree Aluminum
• NEMA Rating: 3, 3R, 4, 4X
• Special Features: Grounding style with shell and extra pole; designed for rough use; weatherproof construction.
• Country of Origin: Mexico
• Environmental Conditions: Temperature rating from -40 to 107 degrees Celsius
