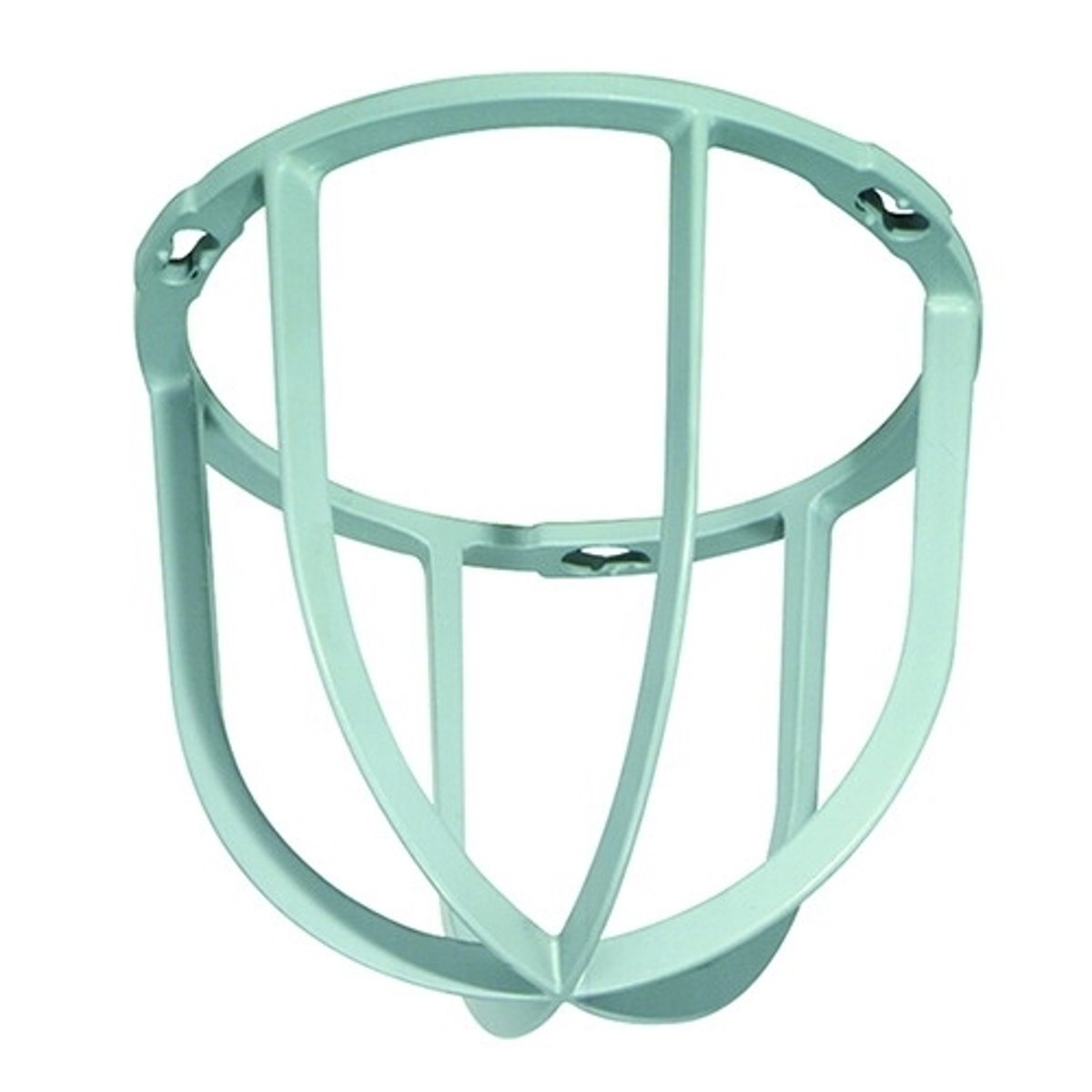

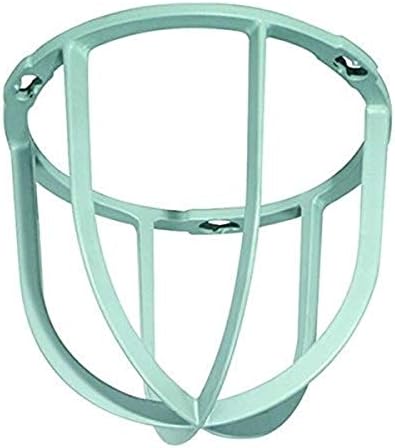

Appleton AAGU-1 Aluminum Guard For A51 F

Product Description

The APPLETON AAGU-1 aluminum guard is designed for A51 F fixtures. Constructed from copper-free aluminum with an epoxy-clad and epoxy powder coat finish, this guard is suitable for use with 60 - 300 W medium incandescent lamps. It is designed for Group A and B: Class I, Division 1 and 2 hazardous locations.

• Safe, easy servicing or relamping without disconnecting any wiring.
• All joints are flame-tight.
• Specially formulated two-coat baked epoxy enamel provides superior protective finish to resist corrosion.

Product Highlights

Durable aluminum construction with epoxy coating. Ideal for hazardous locations and wet environments. Compatible with 60-300W medium incandescent lamps.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: AAGU-1
• Country of Origin: Mexico

Technical Specifications

• Type: Guard
• Brand: Appleton
• Material: Aluminum
• Lamp Type: Incandescent
• Sub Brand: Unilet
• Used With: 60 - 300 W Medium Incandescent
• Applications: For used on AAUA-15 Fixture Unit
• Catalog Number: AAGU-1
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Application: For Used On AAUA-15 Fixture Unit
• Special Features: Safe, easy servicing or relamping without disconnecting any wiring; All joints are flame-tight; Specially formulated two-coat baked epoxy enamel provides superior protective finish to resist corrosion, applied to all mounting hoods, fixture units and guard; New high temperature glass-reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood; Ideal for use in chemical and petrochemical plants and in other heavy process areas where ignitable vapors, dust, moisture and corrosive atmospheres may be present; Suitable for use in wet locations
• Standard: For Group A And B: Class I, Division 1 And 2, Groups A , B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; For Group C And D: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428
• UPC: 781381110709
• GTIN: 00781381110709
• Item Type: Guard
• Finish: Epoxy Powder Coated
• Suitable For Use With: 60 to 300 W AAU-1N, AAU-15N Medium Base Incandescent Fixture Unit
• Socket Type: Medium
• Height: 6.00 in
• Length: 7.50 in
• Width: 7.50 in
