Appleton 847-75 Square Tile Cover, 4 inch, 3/4 inch Raised

Product Description

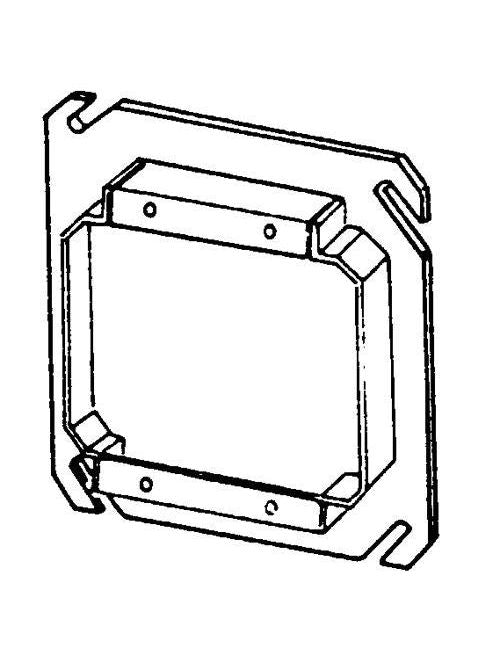

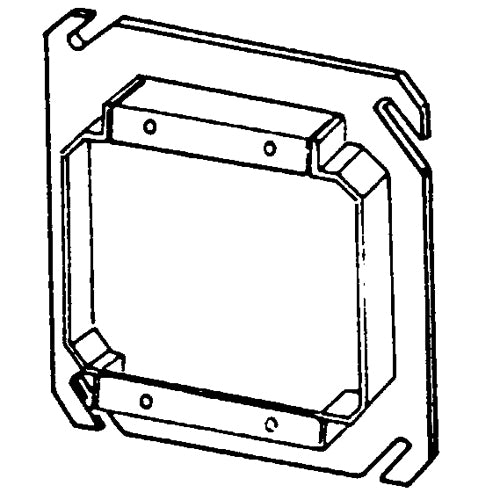

The Appleton 847-75 Square Tile Cover is a 4" double device plaster ring/mud ring with a 3/4" raised depth. It has a volume of 9 cubic inches and is UL standard 514A listed. This steel cover is galvanized for durability. Ideal for square electrical box applications.

• Steel construction with galvanized finish
• 3/4" raised design
• UL Standard 514A Listed

Product Highlights

The Appleton Square Tile Cover is ideal for providing a protective and code-compliant covering for electrical boxes in various applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 847-75
• Country of Origin: US

Technical Specifications

• Material: Steel
• Size: 4 x 4 x 0.75 IN
• Type: Square Tile Cover, Plaster Ring, Mud Ring
• Brand: Appleton
• Sub Brand: ETP
• 12-Digit UPC: 687855768608
• Finish: Galvanized
• GTiN: 00687855768608
• Product UPC: 68785576860
• Shape: Square
• Certifications and Compliance: BAA | Buy American Compliant
• Length: 9.90 in
• Width: 9.80 in
• Depth: 3/4 in
• Height: 0.22 in
• Raised: 3/4 in
• Thickness: 1/16 in
• Capacity: 5.8 in³
• Cubic Capacity: 9 CU-IN in³
• Standard: UL Standard 514A; UL Listed E2527; Nema OS-1
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514A File No. E2527
• UNSPSC: 39121304
• Country of Origin: US
• EU RoHS Indicator: C
• Catalog Number: 847-75
• Approval: UL 514A
• Opening Type: (1) Device
• Box Size: 4 Inch
• Corner Type: Rounded
• Made In Usa: Yes
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Square Box Plaster Ring - Steel
• Unspsc: 39121304
• UPC 12 Digit: 687855768608
• SKU Name: 84775 egs
