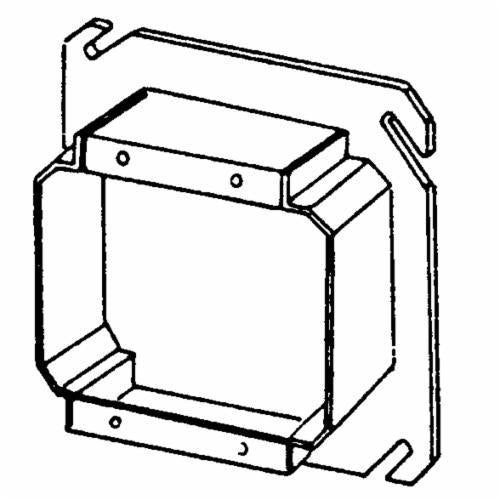

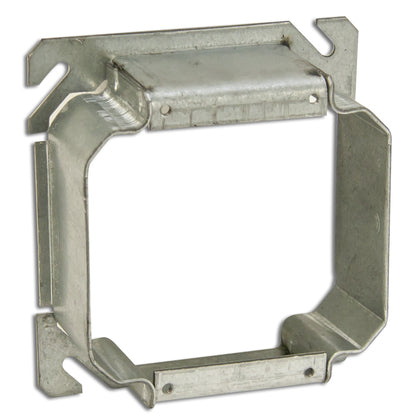

Appleton 847-125 ETP 2-Device Raised Square Box Cover 4 in L x 4 in W x 1-1/4 in D

Product Description

The APPLETON 847-125 ETP 2-Device Raised Square Box Cover is made of durable materials with consistent construction for easy installation. It is suitable for use as a junction box or a device box for switches, receptacles, and GFCIs. This cover is ideal for both indoor and outdoor applications where conduit or cable terminates.

• Suitable for bonding without additional means in circuits above or below 250 Volts.
• Acceptable for use in two-hour fire-rated walls.
• Features a Groundskeeper raised ground on the inside boss.

Product Highlights

The Appleton 847-125 is a metallic 4" square box cover recognized for its quality, selection, and ease of installation.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 847-125
• Country of Origin: USA

Technical Specifications

• Length: 4 in
• Material: Steel
• Series: ETP
• Shape: Square
• Type: Double Device
• Width: 4 in
• Standard & Approvals: UL 514A, E2527, NEMA OS-1, RoHS Compliant
• Capacity: 15.3 cu-in
• Depth: 1-1/4 in
• Finish: Electro Galvanized
• Gangs: 2
• Size: 4 X 4 X 1.25 IN
• Special Features: 4 IN Square, 1 1/4 IN Raised Double Device Cover
• Standard: UL Standard 514A; UL Listed E2527; Nema OS-1
• Sub Brand: ETP
