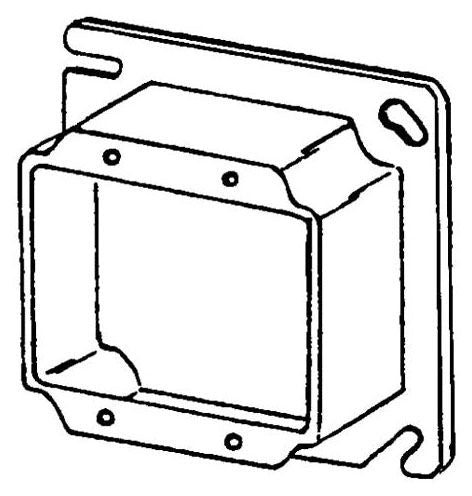

Appleton 8469B 4-inch Square 2-gang Switch Ring

Product Description

The APPLETON 8469B is a 4-inch square 2-gang switch ring designed for use in commercial and industrial electrical installations. This device ring mounts to a 4-inch square electrical box and raises the box face to accept standard 2-gang wiring devices or cover plates. Licensed electricians install this ring as part of rough-in and trim-out work in conduit-based wiring systems. It is a standard component in steel box assemblies where device mounting depth and gang configuration need to match finish hardware.

The 8469B is suited for commercial construction, industrial facilities, and institutional projects where 4-inch square box systems are standard. It is commonly installed in walls and ceilings during rough-in, then used to support duplex receptacles, switches, or blank covers during trim-out. This ring is appropriate for both new construction and retrofit applications using existing 4-inch square boxes.

Key Features

• 4-inch square footprint mounts directly to standard 4-inch square electrical boxes
• 2-gang configuration accepts standard 2-gang wiring devices and cover plates
• Switch ring style provides device mounting and box extension in a single component
• Designed for conduit-based commercial and industrial electrical systems

Compatibility

Designed as an OEM-style replacement and standard fit for 4-inch square electrical box systems used in commercial and industrial conduit wiring installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Power to the circuit must be shut off and verified de-energized at the breaker before working on any box assembly. The ring is fastened to the 4-inch square box using the appropriate box mounting screws before devices or cover plates are attached. Ensure the ring is flush and properly aligned to the finished wall surface before securing wiring devices.

Technical Specifications

• Box Size: 4 inches square
• Gang: 2-gang
• Weight (per 100 units): 40 pounds
• UPC: 68785562773

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 8469B
