Appleton 846-200 4-inch Square Single-gang Tile Ring

Product Description

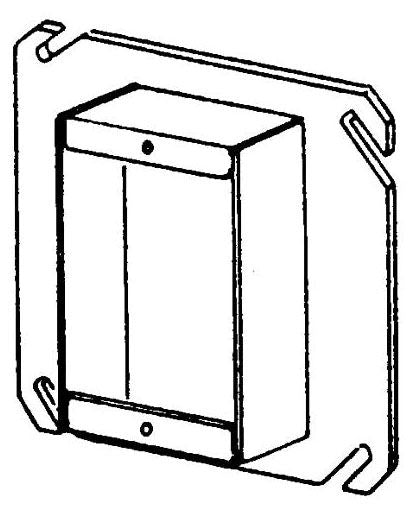

The APPLETON 846-200 is a 4-inch square single-gang tile ring designed to extend a standard electrical box to flush-mount outlets, switches, or devices through finished wall surfaces such as tile or thick drywall. The ring provides a 2-inch raised depth, allowing electricians to accommodate surface materials that would otherwise leave a device recessed or improperly set. This fitting is a common component in commercial and residential rough-in and finish electrical work wherever gang boxes are set behind finished surfaces.

This tile ring is used in both commercial and residential electrical installations where 4-inch square boxes are deployed. It is appropriate for new construction and renovation projects where tile, cement board, or thick wall finishes require additional box extension depth to bring device mounting flush with the finished surface. Licensed electricians typically install this ring during the finish phase of electrical rough-in work.

Key Features

• 4-inch square footprint fits standard 4-inch square electrical boxes
• Single-gang configuration accepts one device or cover plate
• 2-inch raised depth accommodates thick tile or wall finish layers
• Designed for flush device mounting through finished surfaces
• Sold in case quantities; weight is 0.64 pounds per unit based on 64 pounds per 100 units

Compatibility

Designed as an OEM-style replacement and standard accessory for 4-inch square electrical boxes requiring single-gang tile ring extensions.

Installation Notes

Installation is performed by a licensed electrician. De-energize the circuit at the panel and verify with a meter before handling any box or wiring. The tile ring mounts to the face of the 4-inch square box and should be secured before the finished wall surface is applied. Follow local electrical codes and NEC requirements for box fill and device mounting depth.

Technical Specifications

• Box Size: 4 inches square
• Gang Configuration: Single-gang
• Raised Depth: 2 inches
• Weight (per 100 units): 64 pounds
• UPC: 68785576850

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 846-200
