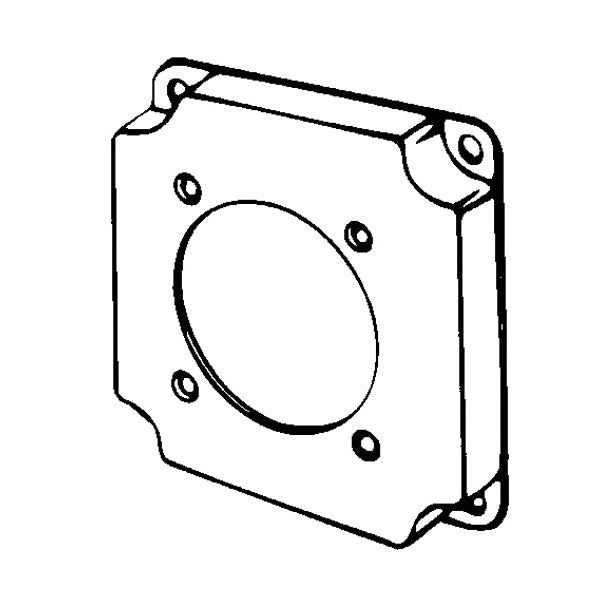

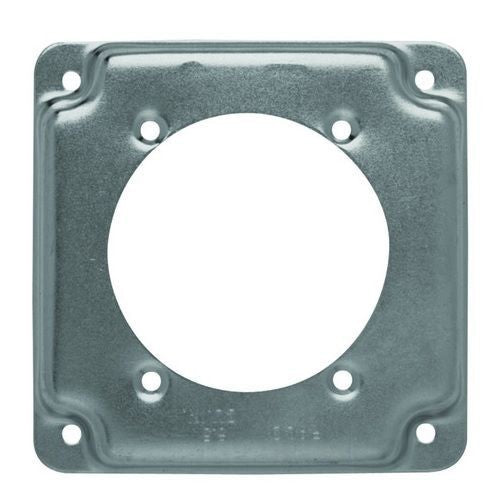

Appleton 8378 Raised Electrical Box Cover 4 in L x 4 in W x 1/2 in D Single Receptacle

Product Description

The APPLETON 8378 Raised Electrical Box Cover measures 4 in L x 4 in W x 1/2 in D and is constructed of steel. This cover is designed for single receptacle applications in commercial and industrial settings. It has a capacity of 7 cu-in and a galvanized finish.

• Suitable for bonding without additional means in circuits above or below 250 VAC
• Acceptable for use in two-hour fire rated walls
• Features a Groundskeeper raised ground on boss inside box

Product Highlights

The APPLETON 8378 is a steel, raised electrical box cover designed for single receptacles, ensuring easy installation and reliable performance in diverse wiring applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 8378
• Country of Origin: US

Technical Specifications

• Application: Commercial and Industrial Applications
• Capacity: 7 cu-in
• Country of Origin: US
• Cover Type: Single Receptacle
• Depth: 1/2 in
• Finish: Galvanized
• Length: 4 in
• Material: Steel
• Mfg Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, NEMA OS-1, UL 514A, E2527
• Mounting Type: Surface
• Number of Gangs: 1
• Shape: Square
• Type: Raised
• Width: 4 in
• Thickness: 1/16 in
• Composition: Metallic
• Cover Design: Raised
