Appleton 7480V AC/Flex Connector 3/8 - 1/2 inches Diameter

Product Description

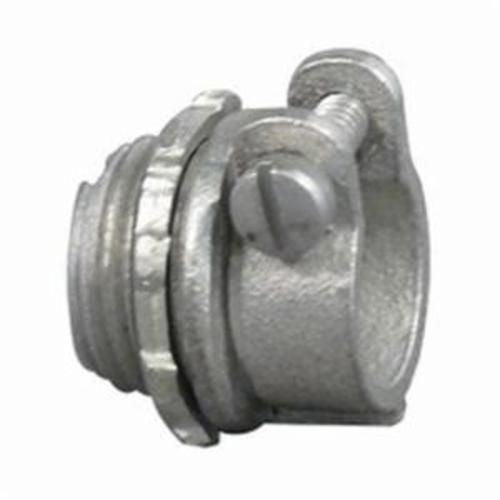

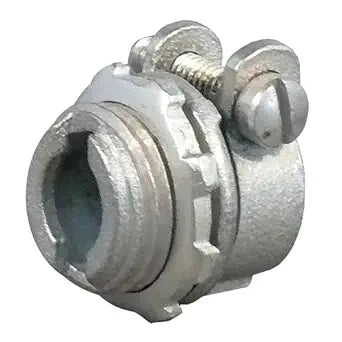

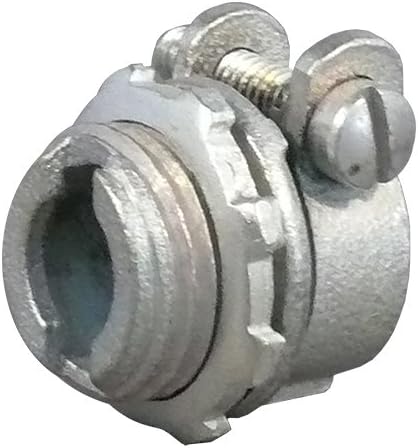

The APPLETON 7480V AC/Flex Connector is a straight body armored cable and flexible metal conduit connector. It is designed to ground and secure armored cable and flexible metal conduit to boxes and enclosures. It has a diameter of 3/8 - 1/2 Inch and a cable range of 0.53 - 0.69 Inch.

• Male NPS thread connection
• 0.44 in thread length
• Zinc Electroplated

Product Highlights

The APPLETON AC/Flex Connector is made of malleable iron with zinc plating and furnished with locknut.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7480V
• Country of Origin: China

Technical Specifications

• Material: Malleable Iron
• Diameter: 3/8 in
• Brand: Appleton
• Item model number: 7480V
• Country Of Origin: China
• Number Of Items: 1
• Suitable For Use With: Armored Cable and Flexible Metal Conduit
• Trade Size: 3/8 in
• Application: For grounding and securing nonmetallic sheathed and service entrance cable to boxes and enclosures
• Angle: 90 deg
• Finish: Zinc Plated
• Cable Openings: 0.31 - 0.63 in
• Standard & Approvals: UL 514B/E14814 Listed, CSA 065178/C22.2 No 18.3 Certified, NEMA FB-1
• Item: Flexible Connector
• Cable/conduit Type: Armored Cable, Flexible Metal Conduit , Armored Cable/Flexible Metal Conduit
• Composition: Metallic
• Conduit/cable Type: Armored Cable, FMC (Flexible Metallic Conduit)
• Connection Type: Clamp
• Cord Size: 0.31" to 0.63"
• Family Series: Appleton Fittings
• Grounding Lug: No
• Hazardous Rated: No
• Hub Type: Male NPS Thread
• Installation: Screw
• Insulated Throat: No
• Jacketed: No
• Knockout Size: 1/2"
• Length: 1.19"
• Max Nema Rating: NEMA FB1
• Throat Type: Non Insulated
• Type: Straight
