Appleton 7384 1-1/4 inches 90D 1-Screw Flex Connector

Product Description

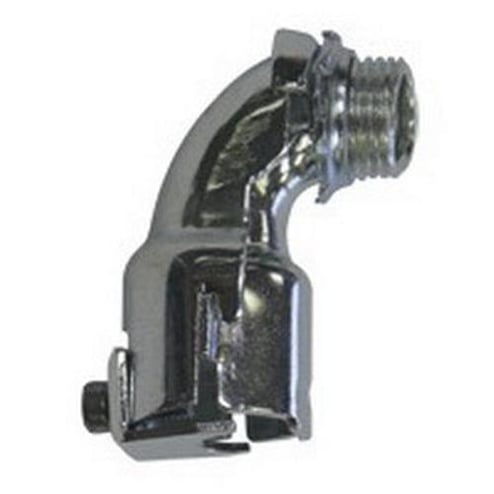

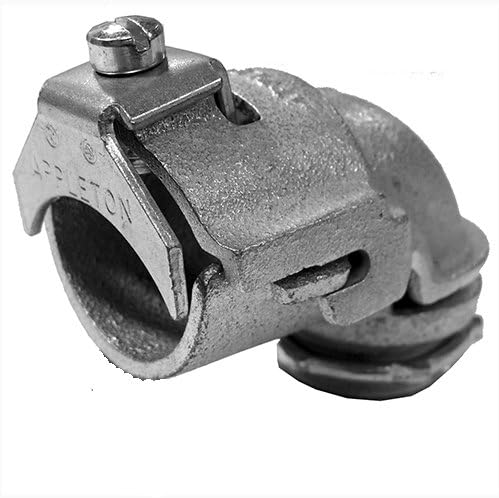

The APPLETON 7384 is a 1-1/4" 90D 1-Screw Flex Connector. This hardware is designed for armored cable and flexible metallic conduit (FMC) with a clamp connection type. It features a male NPS thread hub type and is constructed from malleable iron with a metallic composition.

• Male hub NPS thread connection
• 90 degree angle
• Suitable for use with armored/FMC cable

Product Highlights

This connector is ideal for securing flexible metal conduit to EMT conduit. It is also used to ground armored ground wire, armored cable, nonmetallic sheathed cable and flexible metal conduit to boxes and enclosures.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7384
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: 7384
• Manufacturer: Appleton
• Family Series: Appleton Fittings
• Description: Hardware
• Conduit/Cable Type: Armored Cable, FMC (Flexible Metallic Conduit)
• Connection Type: Clamp
• Angle: 90 deg
• Trade Size: 1-1/4 in
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Material: Malleable Iron
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Cable Openings: 1.47 to 1.78 in
• Finish: Zinc Electroplated
• Suitable For Use With: Armored/FMC Cable
• Type: Non-Insulated Throat
• BABA Compliant: No
• Sold as: EACH
