Appleton 7300S EMT Compression Connector 3 inches

Product Description

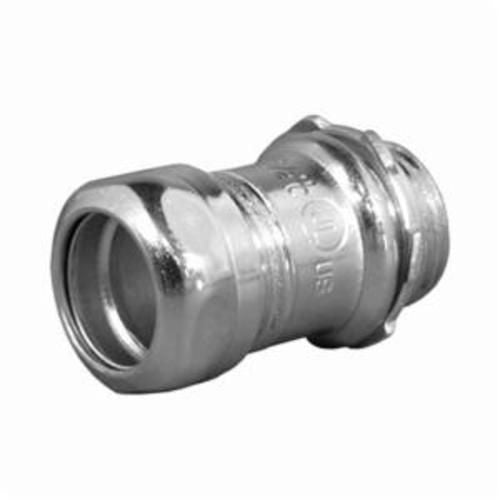

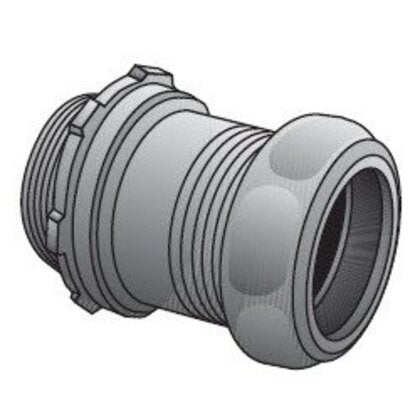

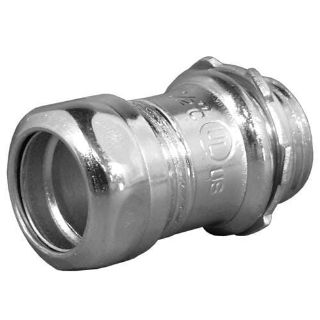

The APPLETON 7300S is an ETP™ 7000S Series steel EMT compression connector used to ground and secure EMT raceways to boxes and enclosures. It features a male NPS threaded hub and is available with or without an insulated throat. It is made of steel with a zinc electroplated finish.

• Male hub NPS thread connection
• Concrete tight
• Zinc Electroplated

Product Highlights

The APPLETON 7300S is ideal for grounding and securing EMT conduits to electrical boxes and enclosures.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7300S
• Country of Origin: IN

Technical Specifications

• Application: For grounding, securing EMT raceways to boxes and enclosures
• Series: 7000S
• Material: Steel
• Trade Size: 3 in
• Country of Origin: IN
• Suitable For Use With: EMT Conduit
• Type: Non-Insulated Throat Straight
• Finish: Zinc Electroplated
• Insulation: Non-Insulated
• Standard & Approvals: UL 514B/E14815/E14895 Listed, CSA 028507/C22.2 No 18.3 Certified, cUL E14815 Listed, NEMA FB-1, RoHS Complaint
• Accessory Type: Conduit Connectors
• Category: Conduit Fittings
