Appleton 7287V 1/2 in Straight Box Conn replacement mpn

Product Description

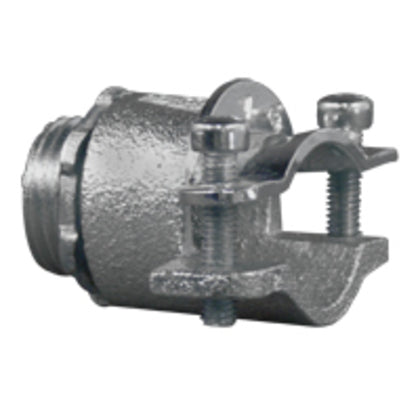

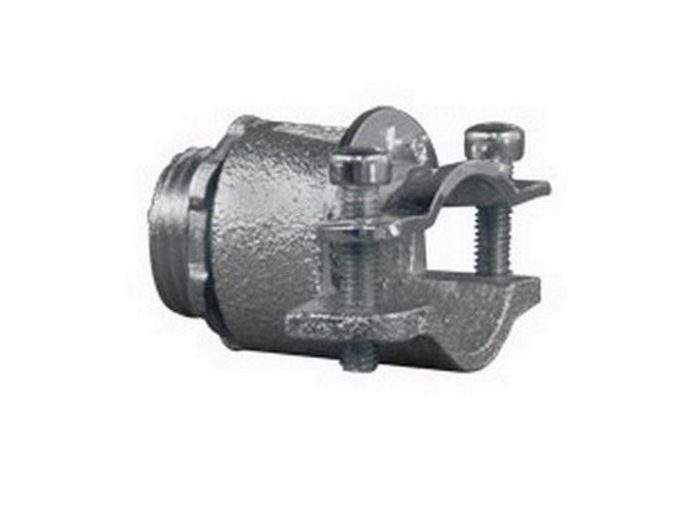

The APPLETON 7287V is a straight conduit connector with a 1/2 IN size. It is designed for armored ground wire and nonmetallic sheathed cable connections. Constructed from die-cast zinc, it measures 1.09 IN in length and 1.88 IN in width, with a thread length of 0.41 IN. This connector meets UL 514B and UL standards.

• Connects armored ground wire and non-metallic sheathed cable
• Constructed from die-cast zinc
• Complies with UL 514B and UL standards

Product Highlights

The APPLETON 7287V straight box connector ensures secure connections for armored and non-metallic cables, suitable for various electrical applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7287V
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 7287V
• Manufacturer: Appleton
• Family Series: Appleton Fittings
• Conduit/Cable Type: Armored Cable, Non-Metallic Sheathed Cable
• Connection Type: Clamp
• Angle: Straight
• Trade Size: 1/2 "
• Hub Type: Male NPS Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Material: Malleable Iron
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Diameter: 1/2 in
• UPC: 781381772907
• Country of Origin: United States
• Main Category: Electrical Equipment
• Size: 1/2in
• Electrical Boxes, Conduit, Strut, and Raceway: Electrical Fittings
• Electrical Fittings: Connectors and Couplings
• Standard Materials and Finishes: Combination couplings are zinc diecast. All other connectors are zinc plated malleable iron
• NEC and CEC Certifications and Compliances: Listed or Rated for Ordinary Locations
• Alt. Size: 1/2"
