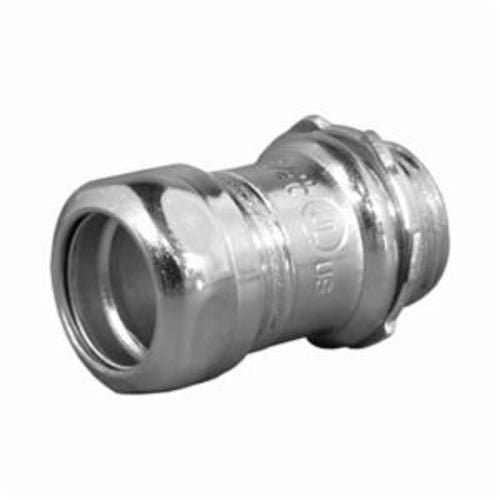

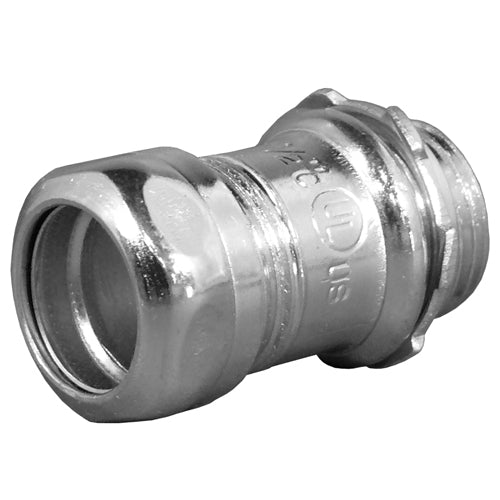

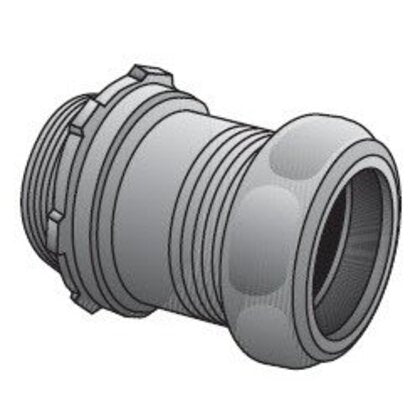

Appleton 7250S ETP 7000S Non-Insulated Throat Straight Compression Connector, 2-1/2 in Trade

Product Description

The APPLETON 7250S ETP 7000S is a non-insulated throat straight compression connector with a 2-1/2 inch trade size. It is designed for use with EMT conduit. It is made of steel with a zinc electroplated finish. It is used for grounding and securing EMT raceways to boxes and enclosures.

• Male hub NPS thread connection
• Concrete tight
• 7/8 in thread length

Product Highlights

The APPLETON 7250S is ideal for connecting EMT conduit in various applications. Its robust construction and zinc electroplated finish ensure long-lasting performance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7250S
• Country of Origin: IN

Technical Specifications

• Color: Metallic
• Diameter: 3.34 in
• Finish: Zinc Electroplated
• Material: Steel
• Series: 7000S
• Suitable For Use With: EMT Conduit
• Trade Size: 2-1/2 in
• Type: Non-Insulated Throat Straight
• Application: For grounding and securing EMT raceways to boxes and enclosures
• Standard & Approvals: UL 514B/E14815/E14895 Listed, CSA 028507/C22.2 No 18.3 Certified, cUL E14815 Listed, NEMA FB-1, RoHS Complaint
• Connection: Male NPS Thread
• NEMA Rating: FB-1
• Insulation: None
• Connector Type: Compression
