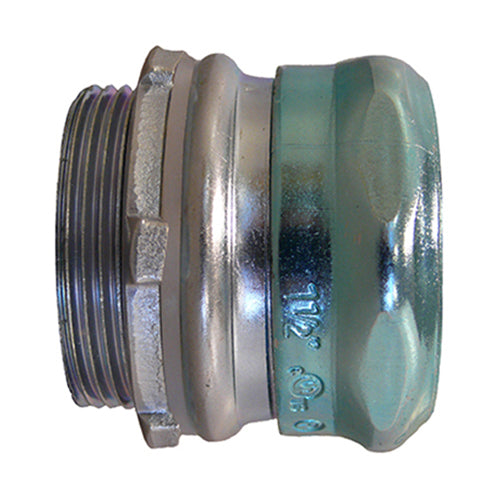

Appleton 7100GSR etp non-insulated gland compression connector, 1 in trade, straight

Product Description

The APPLETON 7100GSR ETP™ compression connector is a non-insulated gland designed for use with EMT raceways, boxes, and enclosures. It features NPS male hub threads and a green compression nut that identifies the fitting as raintight. This connector is made of steel with a zinc electroplated finish.

• NPS male hub threads
• Raintight, Concretetight
• No disassembly required

Product Highlights

The APPLETON ETP™ 7100GSR is ideal for grounding and securing EMT raceways in wet conditions.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7100GSR
• Country of Origin: IN

Technical Specifications

• Brand: Appleton
• Angle: Straight
• Finish: Zinc Electroplated
• Material: Steel
• Series: 7000GSR
• Suitable For Use With: EMT Raceways, Box and Enclosure
• Trade Size: 1 in
• Type: Non-Insulated Gland
• Application: To ground and secure EMT Raceways to boxes and enclosures in wet locations
• Connection: Male NPS Thread
• Country of Origin: IN
• Environmental Conditions: Raintight
• Insulation: None
• NEMA Rating: FB-1
• Standard: UL Standard: 514B; UL Listed: E14815, E14895; CSA Standard: C22.2 No. 18.3, cUL Listed: E14815; CSA Certified: 028507; NEMA: FB-1
• Standards: ARRA CompliantUL 514BUL File No. E14815/E14895CSA C22.2 No. 18.3cUL E14815CSA 028507
• Sub Brand: ETP
• UNSPSC: 39121434
