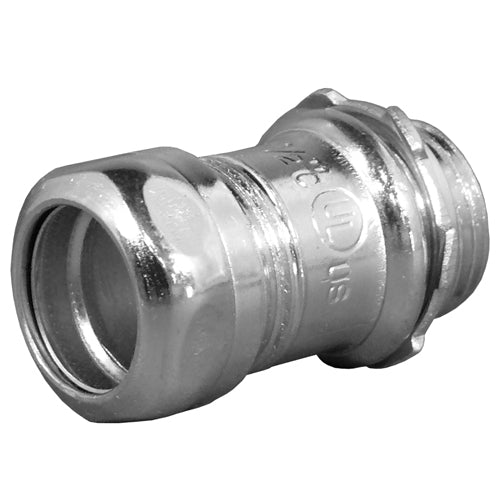

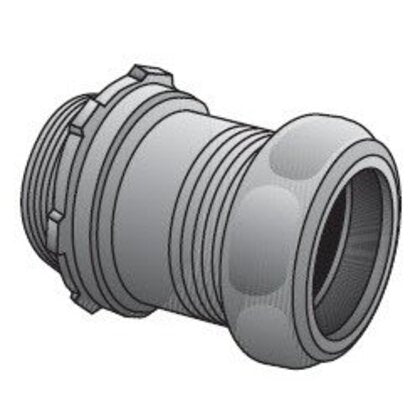

Appleton 7050ST Concretetight Male NPS Thread Straight Compression Connector, 1/2 in Trade

Product Description

The Appleton 7050ST Concretetight Male NPS Thread Straight Compression Connector, 1/2 in Trade, is designed for use with EMT raceway. Constructed of steel with an electro-plated zinc finish. It is designed to ground and secure EMT raceways to boxes and enclosures.

• 1 1/8IN Dia X 1 1/16IN Length
• Male NPS thread connection
• Complies with UL 514B, CSA C22.2, and NEMA FB-1 standards

Product Highlights

This compression connector features steel construction with a zinc electro plated finish and an insulated throat.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7050ST
• Country of Origin: China

Technical Specifications

• Color: Metallic
• Diameter: 1-1/8 in
• Finish: Electro-Plated Zinc
• Material: Steel
• Series: 7000S
• Suitable For Use With: EMT Raceway
• Trade Size: 1/2 in
• Type: Concretetight Male NPS Thread Straight
• Applications: To ground and secure EMT Raceways to boxes and enclosures
• Connector Type: Compression
• TC Connection: Male NPS Thread
• Temperature Rating: 90 C
• Brand: Appleton
• Sub Brand: ETP
• NEMA: FB-1
• Insulation: Insulated
• Country of Origin: China
