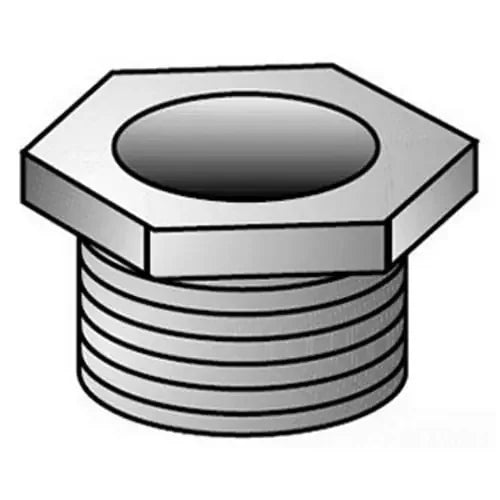

Appleton 7-75 Zinc Plated Malleable Iron Non-Insulated Throat Hex Head Bushed Nipple 3/4-Inch x 0.63-Inch

Product Description

The APPLETON 7-75 is a bushed conduit nipple made of malleable iron with a zinc electroplated finish. It features rigid conduit threads (NPS) and is designed for connecting boxes to conduit couplings through knockouts. It can also be used with a locknut to connect fixture housings in continuous runs or to connect two boxes side by side or back to back.

• Rigid conduit threads (NPS)
• Use through knockout to connect box to conduit coupling
• Use with a locknut to connect fixture housings in continuous runs

Product Highlights

Malleable iron conduit nipple with zinc electroplated finish for connecting boxes and conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 7-75

Technical Specifications

• Type: Bushed Conduit Nipple
• Material: Malleable Iron
• Finish: Zinc Electroplated
• Trade Size: 3/4 IN
• Outside Diameter: 1-1/4 IN
• Connection: MNPS
• Thread Length: 5/8 IN
• Flange Thickness: 3/16 IN
• Third Party Certification: UL File Number E-11853, C
