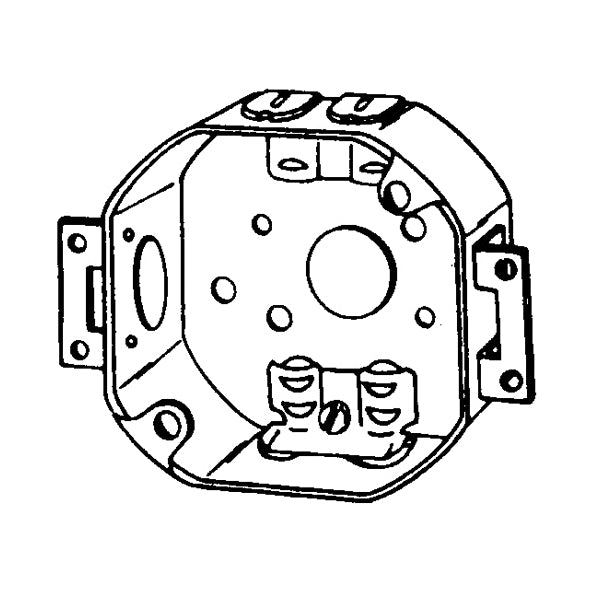

Appleton 561LXE ETP Octagon Box Steel 15.5 cu-in 7 Outlets 7 Knockouts

Product Description

The Appleton ETP 561LXE is a steel octagon box designed for various electrical applications. This box features a capacity of fifteen point five cubic inches and includes seven outlets and seven knockouts for easy wiring. It is ideal for both residential and commercial settings.

• Made from durable steel material
• Suitable for residential and commercial applications
• Contains multiple knockouts for flexible cable entry

Product Highlights

This octagon box meets NEMA FB-1/OS-1 enclosure standards and includes plaster ears for secure installation.

Product Information

Standard Information

• Brand: Appleton
• Country of Origin: US

Technical Specifications

• Application: Residential and Commercial Applications
• Cable Entry: Knockout
• Capacity: 15.5 cu-in
• Diameter: 4 in
• Dimensions: 1-1/2 in D
• Enclosure Type: NEMA FB-1/OS-1
• Finish: Pre-Galvanized
• Includes: CL-26 Non-Metallic Sheathed Cable Clamp, Plaster Ears
• Knockout Size: 1/2 in, 21/32 in
• Material: Steel
• Mfg Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A/514B/E2527
• Mounting Type: Bolt-On/Threaded
• Number of Knockouts: 7
• Number of Outlets: 7
• Package Height: 0.188 in
• Package Length: 21.2 in
• Package Weight: 0.587 lb
• Package Width: 8.7 in
• Shape: Octagon
