Appleton 561LVB Octagon Box Steel 15.5 cu-in 7 Knockouts

Product Description

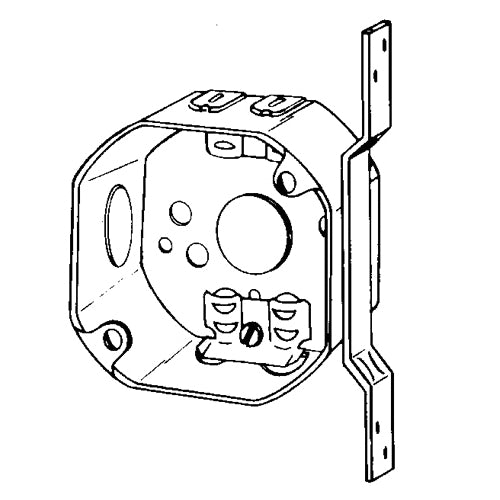

The Appleton 561LVB Octagon Box is a reliable steel enclosure designed for both residential and commercial electrical applications. This octagon-shaped box has a capacity of fifteen and one-half cubic inches and features seven knockouts for versatile wiring options. It measures one and one-half inches deep and four inches in diameter.

• Constructed from steel for durability
• Includes seven knockouts for flexible cable entry
• Approved for use in fire-rated walls

Product Highlights

The Appleton 561LVB is suitable for various wiring configurations without the need for additional bonding methods in circuits exceeding two hundred fifty volts AC. This box’s concentric and eccentric knockouts simplify installation.

Product Information

Standard Information

• Application: Residential and Commercial Applications
• Enclosure Type: NEMA FB-1/OS-1

Technical Specifications

• Material: Steel
• Capacity: 15.5 cu-in
• Dimensions: 1-1/2 in D
• Diameter: 4 in
• Knockout Size: 1/2 in, 21/32 in
• Number of Knockouts: 7
• Mounting Type: Bolt-On/Threaded
• Mounting Orientation: Vertical
• Country of Origin: US
• Finish: Pre-Galvanized
• Mfg Standards/Approvals: UL 514A/514B/E2527
