Product Description

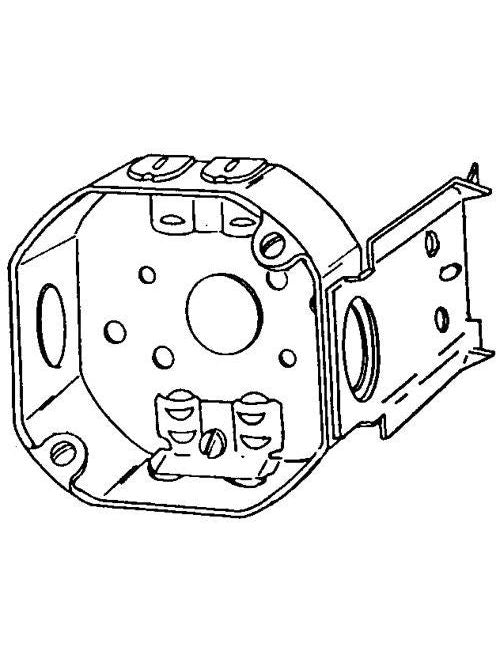

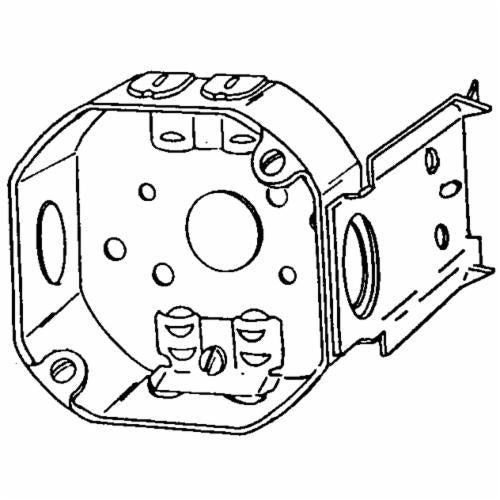

The APPLETON 561LJB is a 4" octagon box with a depth of 1-1/2", constructed from steel. It features side knockouts, bottom knockouts, and end knockouts. This box has a cubic capacity of 15.5 cubic inches and includes a JB bracket set flush with gauging notches. It is suitable for residential and commercial applications.
- Constructed from durable steel for lasting performance.
- Features multiple knockouts for versatile cable entry options.
- Includes a JB bracket for easy and secure mounting.
Product Highlights
The APPLETON 561LJB octagon box is ideal for junction or device box applications, offering easy installation and reliable performance.
Product Information
Standard Information
-
Brand: APPLETON
-
Manufacturer Part Number: 561LJB
-
Country of Origin: USA
Technical Specifications
-
Size: 4 X 4 X 1.5 IN
-
Type: Octagonal Box
-
Brand: Appleton
-
Material: Steel
-
Sub Brand: ETP
-
Product UPC: 68785576535
-
12-Digit UPC: 687855765355
-
Knockout Size: 1/2 and 21/32 in
-
Number of Outlets: 7
-
Series: ETP
-
Shape: Octagon
-
Application: Residential and Commercial Applications
-
Cable Entry: Knockouts
-
Capacity: 15.5 cu-in
-
Finish: Pre-Galvanized
-
Includes: "JB" Bracket
-
Enclosure Type: NEMA FB-1/OS-1
-
Standard & Approvals: UL 514A, 514B, E2527, RoHS Compliant
-
Number of Knockouts: 7
-
Knockout Diameter: 1/2 in, 21/32 in
-
Mounting: Bracket, Screw On, Nail On
-
Diameter: 4 in
-
Depth: 1 1/2 in
-
Cubic Inches: 15.500 in
-
Product Series: 4 in Octagon Boxes
-
Manufacturer Part Number: 561LJB
-
Manufacturer: Appleton
-
Family Series: Appleton Electrical Boxes, 4 in Octagon Boxes Series
-
Box Type: Box
-
Clamp Type: CL-26
-
Bracket: Side Mount w/ Set Up Hook
-
Set Back: None
-
Approvals: UL
