Appleton 561LD Octagon Box 4 in 2-1/8 Deep

Product Description

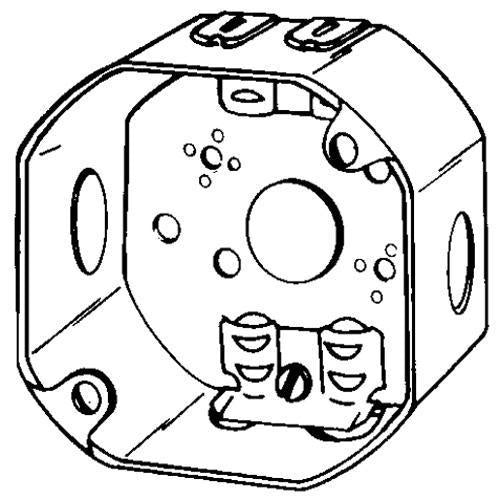

The APPLETON 561LD is a steel octagon box with a 4" diameter and a depth of 2-1/8". It features seven outlets and multiple knockouts, including 1/2" and 21/32" sizes, and CL 26 nonmetallic sheathed cable clamps. This box is suitable for use as a junction box or a device box for switches and receptacles.

• Constructed of durable steel with a pre-galvanized finish.
• Features 2@1/2" side knockouts, 1@1/2" bottom knockout, and 4@ 21/32" end knockouts.
• Has a cubic capacity of 21.5 cubic inches.

Product Highlights

The APPLETON 561LD octagon box is ideal for electrical installations requiring a robust and versatile junction or device box.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 561LD
• Country of Origin: US

Technical Specifications

• Brand Name: Appleton
• Manufacturer Part Number: 561LD
• Capacity: 21.5
• Country of Origin: US
• Cubic_Capacity: 21.5CU-IN
• Diameter: 4
• Finish: Pre-Galvanized
• Knockouts: Cable Clamp
• Material: Steel
• Number_Of_Outlets: 7
• Shape: Octagon
• Size: 4 X 4 X 2.125in
• Special Features: (1) 1/2 in bottom, (2) 1/2 in side, (4) 21/32 in end knockouts Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface Other boxes provided with flat ground tapped hole, except plenum boxes Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls Unless otherwise noted all concentric or eccentric knockouts are 1/2 to 3/4 in combinations
• Standard: UL E18095
• Sub_Brand: Appleton
• Type: Octagonal Box
• Product Series: 4 in Octagon Boxes
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, 4 in Octagon Boxes Series
• Box Type: Box
• Clamp Type: CL-26
• Approvals: UL
• Cable Entry Size: Knockout
• Enclosure Type: NEMA FB-1/OS-1
• Knockout Size: 1/2 in, 21/32 in
• Number of Knockouts: 7
