Appleton 5100S ETP 5000S Set Screw Coupling 1 in For Use With EMT Conduit

Product Description

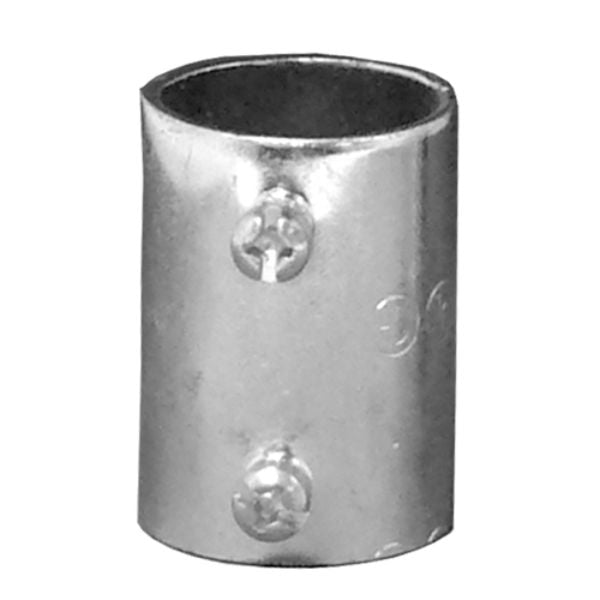

The Appleton ETP 5100S is a set screw coupling designed for use with EMT conduit. The part number is 5100S. This coupling securely connects EMT raceways.

• Constructed from steel with a zinc plated finish
• Meets UL and CSA standards
• Designed for a one-inch EMT conduit

Product Highlights

This coupling is concrete tight when tapped, ensuring a strong and secure connection.

Product Information

Standard Information

• Brand: Appleton
• Part Number: N1565

Technical Specifications

• Application: To ground and secure EMT raceways sections together
• Color: Metallic
• Country of Origin: IN
• Dimensions: 1.31 inches OD x 1.88 inches L
• Finish: Zinc Plated
• Material: Steel
• Mfg Standards/Approvals: UL 514B|UL File No. E14815/E14895|CSA 028507|C22.2 No. 18.3|cUL File No. E14815|NEMA FB-1
• Package Height: 0.2 inches
• Package Length: 7.6 inches
• Package Weight: 0.16 lb
• Package Width: 6.0 inches
• Series: 5000S
• Size: 1 inch
• Suitable For Use With: EMT Conduit
