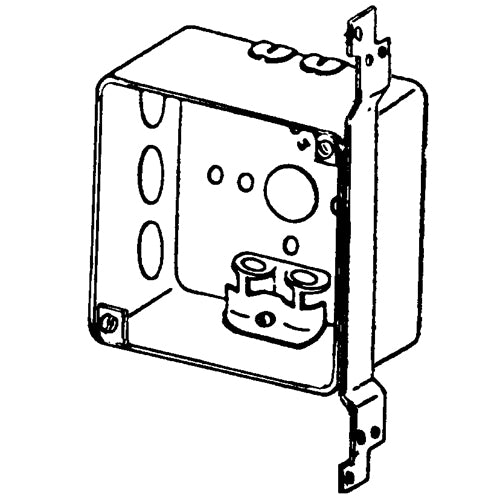

Appleton 4SXDVB-PL 4 inches Square 2-1/8 D Armored-Cable Clamp

Product Description

The APPLETON 4SXDVB-PL 4" Square 2-1/8 D Armored-Cable Clamp is a general-purpose square box suitable for residential and commercial applications. Constructed from steel with a pre-galvanized finish, it features 8 outlets and 8 knockouts. This box is designed for flush mounting and includes a plain vertical bracket.

• Suitable for bonding without additional means in circuits above or below 250 Volts.
• Acceptable for use in two-hour fire-rated walls.
• Minimum thickness of 0.0625 inches.

Product Highlights

The APPLETON 4SXDVB-PL is ideal for electrical installations requiring a durable and versatile square box with armored cable clamps.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4SXDVB-PL

Technical Specifications

• Knockout Size: 1/2 in
• Material: Steel
• Mounting Type: Flush
• Number of Knockouts: 8
• Number of Outlets: 8
• Shape: Square
• Type: General Purpose
• Application: Residential and Commercial Applications
• Standard & Approvals: UL E2527, RoHS Compliant
• Dimensions: 4 in H x 4 in W x 2-1/8 in D
• Cable Entry: Knockouts
• Capacity: 30.3 cu-in
• Enclosure Type: NEMA FB-1/OS-1
• Finish: Pre-Galvanized
• Includes: Plain Vertical Bracket
• Brand: Appleton Group
• Category: Electrical
