Appleton 4SXD etp general purpose square box with armored cable/metal clad cable cl-13 clamp

Product Description

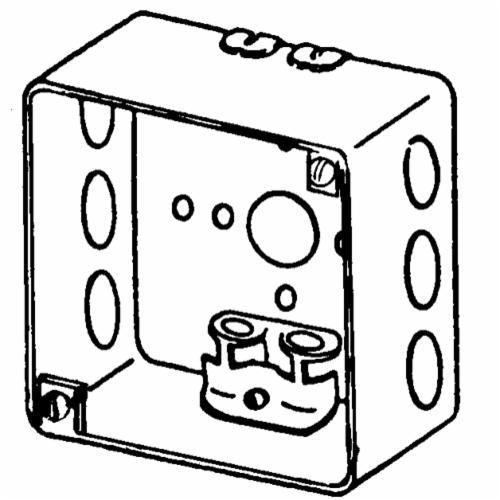

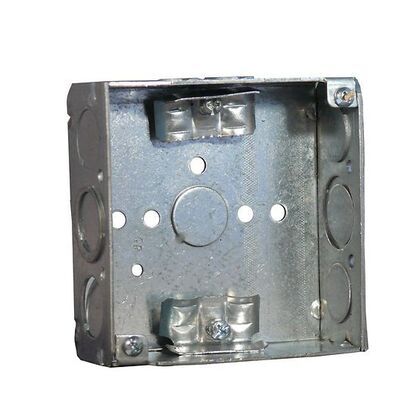

The APPLETON 4SXD ETP General Purpose Square Box is designed with an armored cable/metal clad cable CL-13 clamp. Suitable for residential and commercial applications, this steel square box features 11 outlets and 11 knockouts. It is pre-galvanized and NEMA FB-1/OS-1 rated.

• Suitable for bonding without additional means in circuits above or below 250 Volts
• Acceptable for use in two-hour fire rated walls
• Features a flat ground tapped hole

Product Highlights

This Appleton steel square box is ideal as a junction box or a device box for switches, receptacles, and GFCIs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4SXD
• Country of Origin: United States of America (the)

Technical Specifications

• Knockout Size: 1/2 in
• Material: Steel
• Number of Knockouts: 11
• Number of Outlets: 11
• Series: ETP
• Shape: Square
• Type: General Purpose
• Application: Residential and Commercial Applications
• Standard & Approvals: UL E2527, RoHS Compliant
• Cable Entry: Knockouts
• Capacity: 30.3 cu-in
• Enclosure Type: NEMA FB-1/OS-1
• Finish: Pre-Galvanized
• Includes: Armored Cable/Metal Clad Cable (CL-13) Clamp
• Knockout Diameter: 1/2 in, 21/32 in
• Mounting: Screw On, Nail On
• Depth: 2 1/8 in
• Cubic Inches: 30.300 in
• Knockouts: Yes
