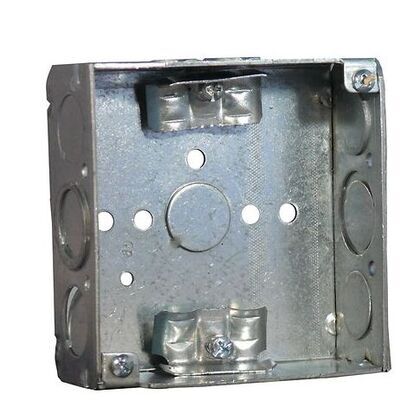

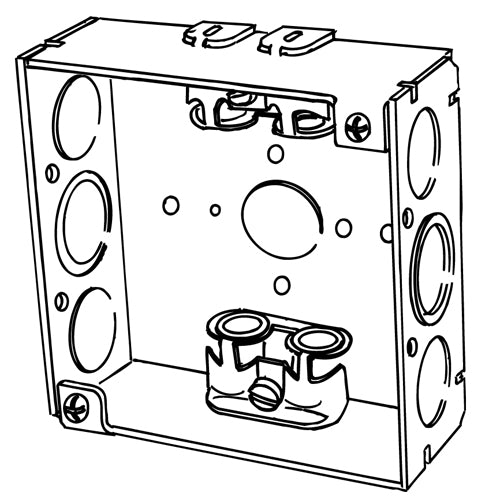

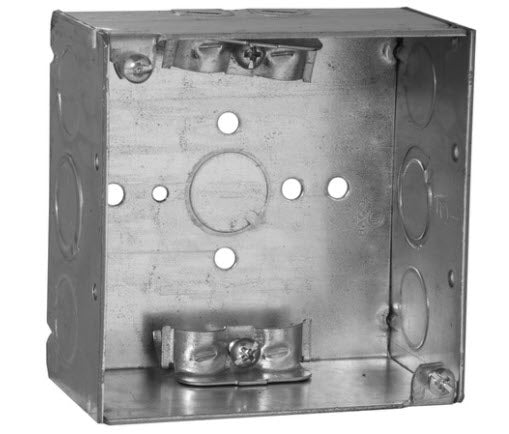

Appleton 4SX-EK Square Box With Armored Cable/Metal Clad Cable CL-25 Clamp, Steel, 21 cu-in Capacity, 11 Outlets

Product Description

The Appleton 4SX-EK square box with armored cable/metal clad cable CL-25 clamp is made of steel with 21 cu-in capacity and 11 outlets. It can be used as a junction box or a device box for switches, receptacles, and GFCIs. It is manufactured of durable materials with consistent construction for easy installation.

• Concentric and Eccentric Knockouts
• Use in Fire-Rated Assemblies
• Manufacturered from Pre-galvanized Steel

Product Highlights

The Appleton 4SX-EK square box is recognized for its quality, selection, and ease of installation. It features concentric and eccentric knockouts and is UL listed.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4SX-EK
• Country of Origin: USA

Technical Specifications

• Capacity: 21 cu-in
• Enclosure Type: NEMA FB-1/OS-1
• Finish: Pre-Galvanized
• Knockout Size: 1/2 in, 21/32 in
• Material: Steel
• Number of Knockouts: 11
• Number of Outlets: 11
• Shape: Squared
• Mounting: Screw On, Nail On
• Depth: 1 1/2 in
• Cubic Inches: 21 in
• Knockouts: Yes
• Brand Name: Appleton
• Country of Origin: US
• Cubic_Capacity: 21
• Number_Of_Outlets: 11
• Size: 4
• Special Features: (4) 1/2 in, (2) eccentric side, (1) 1/2 in bottom, (4) 21/32 in end knockouts
• Standard: UL E18095
• Sub_Brand: Appleton
• Type: Square Box
