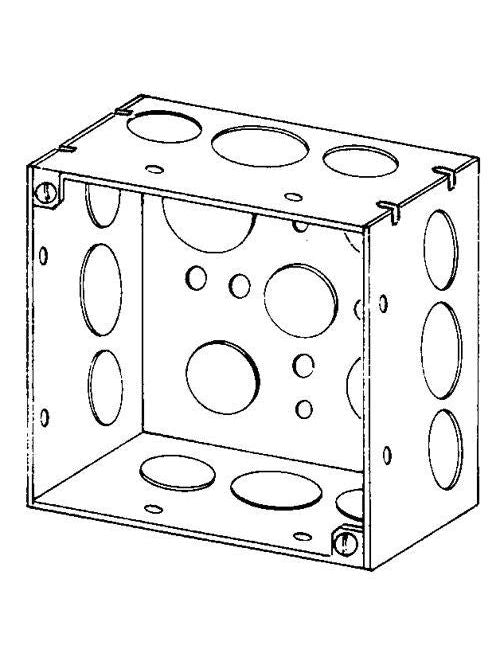

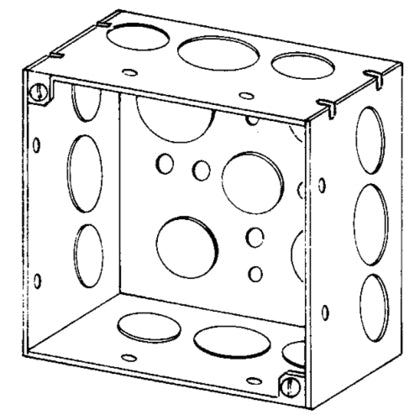

Appleton 4SD-SPL 4 inches Square Box, Welded, 2-1/8 inches Depth, 1/2 and 3/4 inches Knockouts, Steel

Product Description

The Appleton 4SD-SPL is a 4" square box known for its quality and ease of installation. It can be used as a junction box or a device box for switches, receptacles, and GFCIs. Manufactured from durable materials with consistent construction, it ensures easy installation and quality wiring jobs.

• Listed for Ordinary Locations
• UL Listed
• Use in Fire-Rated Assemblies

Product Highlights

The Appleton 4SD-SPL square box features 1/2 and 3/4" knockouts and is made from pre-galvanized steel.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4SD-SPL

Technical Specifications

• Knockout Diameter: 1/2 in, 3/4 in
• Mounting: Screw On, Nail On
• Material: Steel
• Depth: 2 1/8 in
• Cubic Inches: 30.300 in ³
• Number of Knockouts: 15
• Knockouts: Yes
• Size: 4 X 4 X 2.125 IN
• Type: Square Box
• Brand: Appleton
• Sub Brand: ETP
• Manufacturer Part Number: 4SD-SPL
• Manufacturer: Appleton
• Product Series: 4 in Square Boxes
• Family Series: Appleton Electrical Boxes, 4 in Square Boxes Series
• Description: BOX OUTLET-3/4 IN SQ, 4X2 1/8in. DEEP
• Box Type: Welded
• Cover Included: No
• Capacity: 30.3 Cubic "
• Approvals: UL
• Comments: 2-1/8 " Deep, Welded
