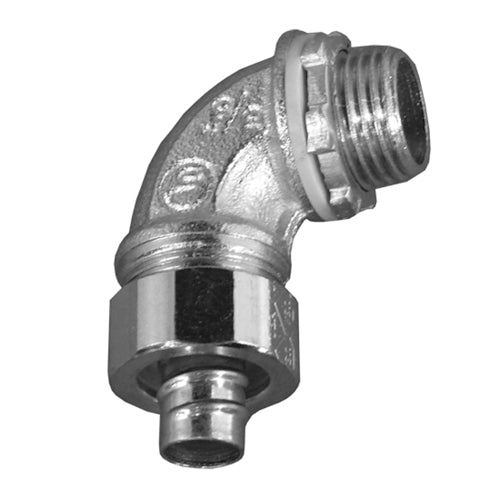

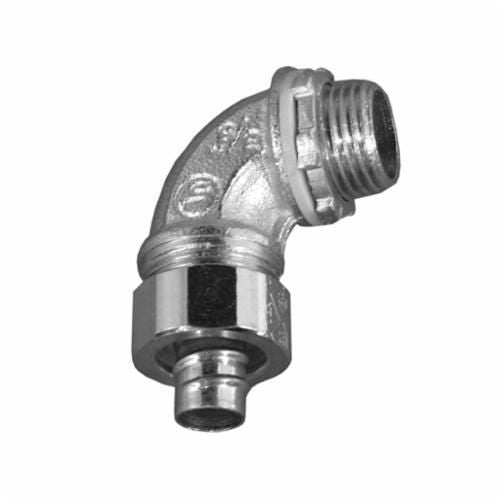

Appleton 4QS9100 90 degree 1 inch liquidtight steel connector

Product Description

The Appleton 4QS9100 is a 90-degree liquidtight flexible conduit connector designed for 1-inch trade size applications. Constructed from zinc-plated malleable iron, steel, and nylon, it features a taper threaded male hub. This connector is liquid, rain, and oil tight, suitable for hazardous and wet locations. It meets UL 514B and CSA C22.2 approvals, and is rated for Class I Div 2, Class II Div 1 and 2, and Class III Div 1 and 2 enclosures.

• 90-degree angle for flexible conduit connections.
• Liquidtight, oiltight, and raintight construction.
• Suitable for hazardous and wet locations, including Class I Div 2.

Product Highlights

Features a compact, slim design with a long ferrule to prevent pullout, furnished with a locknut and sealing ring for secure, liquidtight connections in hazardous and wet environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4QS9100
• Country of Origin: CN

Technical Specifications

• Manufacturer: EMERSON
• Product Type: 4QS Liquidtight Connector
• Connector Type: 90 Degree, Taper Threaded Male Hub, Tapered MNPT, Raintight, Connector, Male NPT Taper Threaded, Compression
• Trade Size: 1 inch
• Material: Zinc Plated Malleable Iron, Steel, Nylon
• Certifications: UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1; RoHs Compliant
• Application: Liquidtight Flexible Metallic Conduit, Hazardous/Wet Location, Machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation, Class I, Division 2 wiring, For Terminating Liquidtight Flexible Metal Conduit to a Enclosure at a 90 Degree Angle
• Environmental Conditions: Liquid/Rain/Oil Tight
• Enclosure Rating: Class I Div 2 and Zone 2, Class II Div 1 and 2, Class III Div 1 and 2
• Standards: NEC/CEC
• UNSPSC: 39121420
• Angle: 90 degree
• Finish: Zinc Electroplated
• Series: ETP 4QS
• ARRA Compliant: N
• Buy American Compliant: N
• EU RoHS Indicator: C
• Insulation: None
