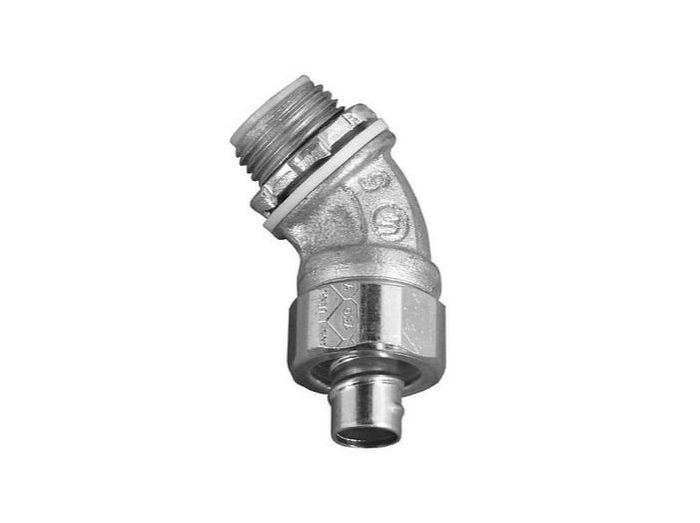

Appleton 4QS475 Non-Insulated Liquidtight Elbow 3/4 in Trade 45 deg

Product Description

The Appleton 4QS475 Non-Insulated Liquidtight Elbow is designed for terminating liquidtight flexible metal conduit to an enclosure at a 90 deg angle. Constructed with a malleable iron body and electro-plated zinc finish, it ensures durability and corrosion resistance. This elbow includes a locknut and sealing ring for secure connections and is suitable for wet locations.

• Features a tapered threaded male NPT hub.
• Offers a compact, slim diameter with a small turning radius.
• Provides a long ferrule to prevent pullout and tight bend conduit "pop-out".

Product Highlights

This liquidtight, raintight, and oiltight fitting is UL listed and suitable for grounding in trade sizes from 3/8 in through 1-1/4 in.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4QS475
• Country of Origin: CN

Technical Specifications

• Angle: 45 deg
• Application: For terminating liquidtight flexible metal conduit to an enclosure at a 90 deg angle
• Finish: Electro-Plated Zinc
• Includes: Locknut and Sealing Ring
• Material: Malleable Iron
• Mfg Standards/Approvals: UL 514B, E11853, CSA C22.2 No. 18.3, 009795, NEMA FB-1, RoHS Compliant
• Series: 4QS
• Trade Size: 3/4 in
• Type: Non-Insulated
• Description: 3/4 IN 45D LFMC CONN
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Hub
• Hub Size: 3/4 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: Yes
• Approvals: CSA, UL
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
