Appleton 4QS450 Non-Insulated Liquidtight Elbow 1/2 in Trade 45 deg

Product Description

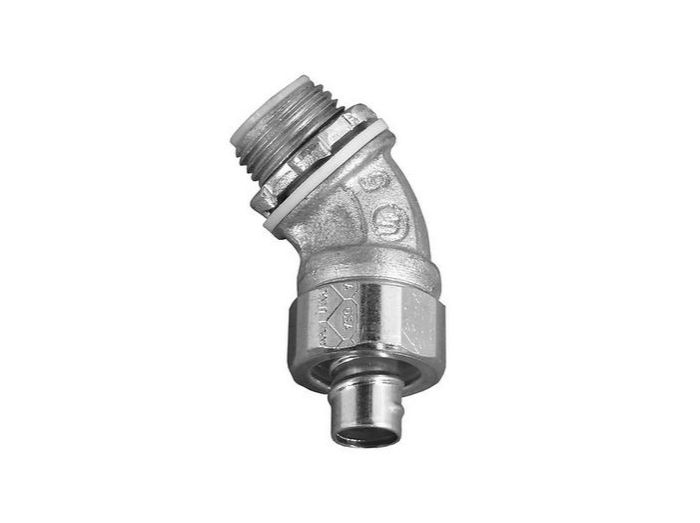

The APPLETON 4QS450 non-insulated liquidtight elbow is designed for terminating liquidtight flexible metal conduit to an enclosure at a 45-degree angle. Constructed from malleable iron with an electro-plated zinc finish, it ensures durability and corrosion resistance. This fitting is suitable for wet locations and applications requiring flexibility or protection from liquids, vapors, or solids.

• Includes locknut and sealing ring for secure connection.
• Features a long ferrule to prevent pullout and conduit pop-out.
• Compact design with a small turning radius for easy installation in tight spaces.

Product Highlights

Provides a liquidtight, raintight, and oiltight seal. Ideal for machine tool building, motor terminations, and robotics assembly.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4QS450
• Country of Origin: CN

Technical Specifications

• Angle: 45 deg
• Finish: Electro-Plated Zinc
• Includes: Locknut and Sealing Ring
• Material: Malleable Iron
• Mfg Standards/Approvals: UL 514B, E11853, CSA C22.2 No. 18.3, 009795, NEMA FB-1, RoHS Compliant
• Series: 4QS
• Trade Size: 1/2 in
• Type: Non-Insulated
• Manufacturer Part Number: 4QS450
• Manufacturer: Appleton
• Product Series: 4QS
• Family Series: Appleton Fittings, 4QS Series
• Description: 1/2 IN 45D LFMC CONN
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Hub
• Hub Size: 1/2 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: Yes
• Approvals: CSA, UL
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
