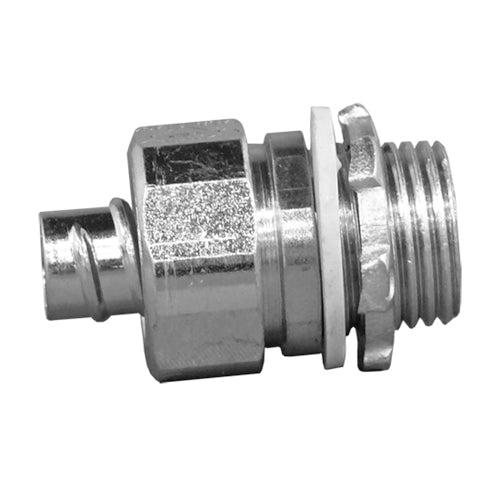

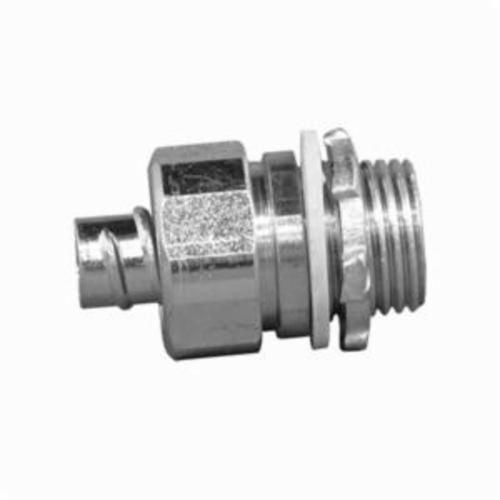

Appleton 4QS-125 Liquid Tight Non-Insulated Oiltight Raintight Conduit Connector 1-1/4 in Trade Straight

Product Description

The APPLETON 4QS-125 liquid tight non-insulated oiltight raintight conduit connector provides safe electrical service in areas exposed to weather, water, oil, dirt, and other contaminants. It is designed for terminating liquid tight flexible metal conduit to an enclosure. Features a male NPT taper threaded connection and is suitable for wet locations and Class I, Division 2 locations.

• Male NPT taper threaded connection
• Non-insulated
• Suitable for wet Locations

Product Highlights

The connector is liquid tight, raintight, and oiltight, with a long, reusable ferrule that prevents pullout and tight bend conduit pop-out.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4QS-125
• Country of Origin: CN

Technical Specifications

• Material: Steel
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Trade Size: 1-1/4 in
• Application: For Terminating Liquid tight Flexible Metal Conduit to an Enclosure
• Angle: Straight
• Finish: Zinc Electroplated
• Standard & Approvals: RoHS Compliant, UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795,NEMA: FB-1
• Connector Type: Compression
• Tc Connection: Male NPT Taper Threaded
• Type: 4QS Liquidtight Connector
• Brand: Appleton
• Sub Brand: ETP
• Series: 4QS
• Environmental Conditions: Raintight
• Insulation: None
• NEMA Rating: FB-1
• Connection: Male NPT Taper Threaded
• Product Series: 4QS
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Hub
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• Hazardous Location: Yes
• Approvals: CSA, UL
