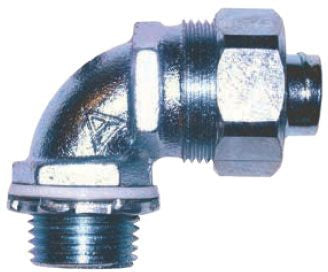

Appleton 4Q-950T 1/2 in 90 Degree Insulated Liquidtight Connector

Product Description

The APPLETON 4Q-950T is a 1/2 inch 90-degree insulated liquidtight conduit connector designed for use in electrical installations where moisture resistance and directional routing are required. This fitting creates a secure, watertight transition between liquidtight flexible conduit and an enclosure or junction box. The 90-degree body angle allows installers to make tight turns close to equipment without stressing the conduit run. It is installed by licensed electricians in commercial and industrial applications where the conduit system must resist liquids, oils, and contaminants.

This connector is suited for use in wet or damp locations, industrial machinery wiring, HVAC equipment connections, and other environments where flexible liquidtight conduit terminates at a panel, motor, or enclosure. The insulated throat protects wire insulation from abrasion at the entry point. Applications include manufacturing floors, mechanical rooms, outdoor equipment hookups, and any installation where a 90-degree liquidtight termination is required at a 1/2 inch trade-size conduit opening.

Key Features

• 90-degree body angle for tight routing close to equipment or enclosures
• 1/2 inch trade size fits standard liquidtight flexible conduit
• Insulated throat protects conductors from abrasion at the fitting entry
• Liquidtight design provides resistance to moisture, oils, and contaminants
• Compact form factor suited for confined wiring spaces

Compatibility

Designed as an OEM-style fitting for use with 1/2 inch trade-size liquidtight flexible conduit in standard electrical enclosure knockouts.

Installation Notes

Installation is performed by a licensed electrician. De-energize all circuits and lock out the equipment before beginning work. Ensure the knockout size matches the 1/2 inch trade size of the connector and that the locknut is tightened securely to maintain the liquidtight seal. Follow applicable NEC requirements for liquidtight flexible conduit fittings in wet or damp locations.

Technical Specifications

• Trade Size: 1/2 inch
• Body Angle: 90 degrees
• Type: Insulated Liquidtight Connector
• UPC: 78312661860

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-950T
