Appleton 4Q-9300 Liquidtight Conduit Connector 3 Inch 90 Degree

Product Description

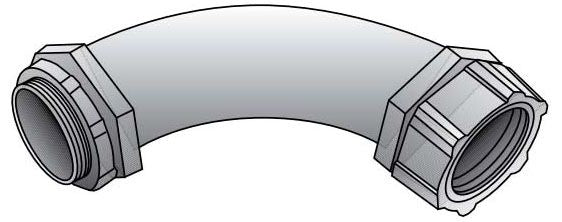

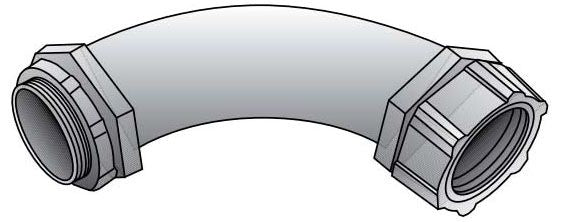

The APPLETON 4Q-9300 is a 3-inch 90-degree liquidtight conduit connector designed for use in electrical raceway systems where moisture resistance and mechanical protection are required. This fitting provides a secure, watertight transition between liquidtight flexible metal conduit and an enclosure or junction box. The 90-degree body angle allows the connector to route conduit in tight spaces without bending the conduit itself, reducing stress on the flexible section. Licensed electricians and industrial maintenance professionals install this type of connector in commercial, industrial, and utility applications where conduit runs must change direction close to an enclosure entry point.

This connector is suited for use in wet and damp location wiring installations, including industrial machinery connections, HVAC equipment wiring, pump and motor terminations, and outdoor electrical enclosures. The 90-degree angle configuration is particularly useful where conduit drops directly from overhead or exits a wall at a right angle before entering a panel or junction box. It is appropriate for use in applications requiring a liquidtight seal at the conduit termination point.

Key Features

• 3-inch trade size accommodates large-diameter liquidtight flexible metal conduit
• 90-degree body angle enables right-angle conduit entry into enclosures
• Liquidtight construction provides a moisture-resistant seal at the termination point
• Designed for wet and damp location electrical installations
• Heavy-duty build suited for industrial and commercial wiring environments

Compatibility

Designed as an OEM-style fitting for use with 3-inch liquidtight flexible metal conduit in standard electrical raceway installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the affected panel or enclosure before beginning conduit termination work. Ensure the locknut is tightened securely to maintain the liquidtight seal and proper ground continuity. Inspect the conduit end for burrs or damage before inserting into the connector body.

Technical Specifications

• Trade Size: 3 inches
• Body Angle: 90 degrees
• Connection Type: Liquidtight
• Package Dimensions (L x W x H): 15.2 inches x 6.5 inches x 6.6 inches
• Weight: 10.4 pounds
• UPC: 78312661965

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-9300
