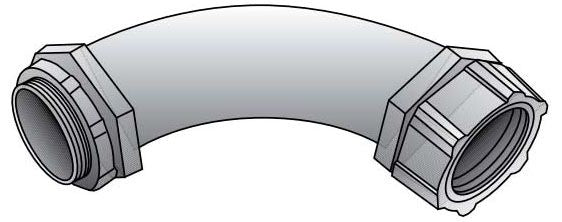

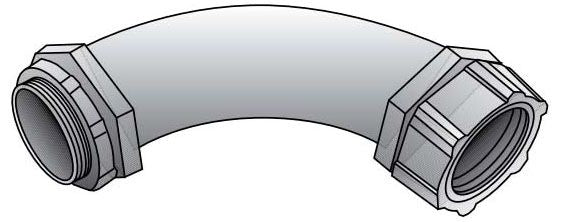

Appleton 4Q-9250 90 Degree Liquidtight Conduit Connector

Product Description

The APPLETON 4Q-9250 is a 90-degree liquidtight conduit connector designed for use with liquidtight flexible metal conduit (LFMC). It provides a watertight, secure termination point where conduit meets an enclosure or junction box. The 90-degree body angle allows the conduit to exit perpendicular to the fitting, which is useful in tight spaces or when routing along a surface. At 2.5 inches trade size, this connector is suited for larger conduit runs carrying substantial conductor loads. Electricians install this fitting in industrial, commercial, and outdoor applications where moisture protection is required.

This connector is used in wet or damp locations where standard straight connectors cannot accommodate the conduit routing geometry. The 90-degree configuration is commonly installed at motor terminations, control panels, and enclosure entries where conduit must make a right-angle turn close to the entry point. It is appropriate for both indoor and outdoor installations requiring liquidtight integrity.

Key Features

• 90-degree body angle for right-angle conduit terminations
• 2.5 inch trade size fits standard 2.5 inch liquidtight flexible metal conduit
• Liquidtight construction provides moisture and water ingress protection
• Suitable for industrial, commercial, and outdoor electrical installations
• Designed for use at motor leads, panel entries, and enclosure connections

Compatibility

Designed as an OEM-style fitting for use with 2.5 inch liquidtight flexible metal conduit in standard electrical enclosure and junction box applications.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for liquidtight fittings in wet or damp locations. De-energize all circuits and lock out the panel before beginning conduit termination work. Hand-tighten the connector onto the conduit and secure the locknut to the enclosure knockout, then use a strap wrench or conduit fitting pliers to achieve a firm, watertight seat without over-torquing the fitting body. Inspect the sealing ring or gland for proper seating before restoring power.

Technical Specifications

• Trade Size: 2.5 inches
• Body Angle: 90 degrees
• Weight: 7.25 pounds
• Package Dimensions (L x W x H): 14.2 inches x 4.8 inches x 5.6 inches
• UPC: 78312661955

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-9250
