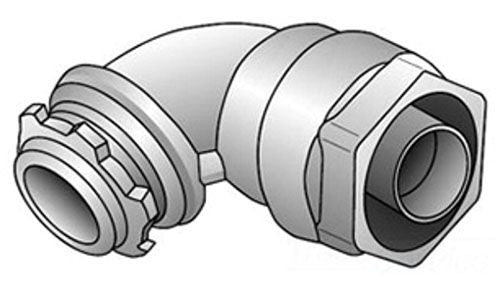

Appleton 4Q-9200 2 in 90 Degree Liquidtight Connector

Product Description

The APPLETON 4Q-9200 is a 2-inch 90-degree liquidtight conduit connector designed for use in electrical conduit systems where a right-angle transition is required with a watertight seal. This fitting connects liquidtight flexible metal or nonmetallic conduit to an enclosure, junction box, or panel knockout. The 90-degree body angle reduces the need for field bending in tight spaces and keeps conduit runs close to surfaces. Licensed electricians install this type of connector in commercial, industrial, and residential applications where moisture resistance is a priority.

This connector is suited for installations where conduit must change direction at a 90-degree angle while maintaining a liquidtight seal. Typical applications include motor connections, outdoor enclosures, wet or damp locations, and industrial control panels. The 2-inch trade size accommodates larger conduit runs common in commercial mechanical rooms, pump stations, and heavy equipment wiring.

Key Features

• 90-degree body angle for right-angle conduit transitions without field bending
• 2-inch trade size for larger conduit installations
• Liquidtight design provides a watertight seal at the enclosure entry point
• Suitable for wet, damp, and outdoor rated locations
• Connects to standard knockout openings on enclosures and junction boxes

Compatibility

Designed as an OEM-style fitting for use with 2-inch liquidtight flexible metal or nonmetallic conduit systems in standard knockout applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for liquidtight fittings and wet or damp location wiring methods. De-energize all circuits and lock out power before beginning conduit work at any enclosure or panel. Ensure the knockout size matches the 2-inch trade size of this connector before installation. Do not overtighten the locknut, as this can deform the fitting or damage the enclosure wall.

Technical Specifications

• Trade Size: 2 inches
• Body Angle: 90 degrees
• Type: Liquidtight Conduit Connector
• UPC: 78312661945

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-9200
