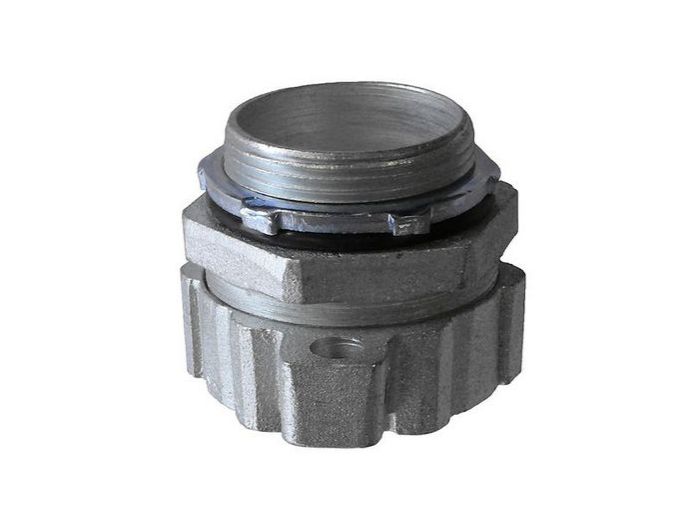

Appleton 4Q-75 straight liquid tight conduit connector 3/4 inch

Product Description

The APPLETON 4Q-75 is a straight liquid tight conduit connector designed for secure, grounded, and sealed connections to boxes and enclosures using liquidtight flexible metal conduit (Type LFMC). It features a zinc electroplated malleable iron body and nut, with a zinc electroplated steel ferrule, providing durability and corrosion resistance.

• Heavy-duty connection device; configuration per suffix
• Compact, slim diameter, small turning radius
• Includes: Locknut and KO sealing ring

Product Highlights

Suitable for use in commercial and industrial applications where liquidtight, raintight, oiltight, and concretetight performance is required. Furnished with a locknut and KO sealing ring for easy installation and reliable sealing.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-75

Technical Specifications

• Part Number: 4Q75
• Manufacturer: Appleton
• Brand: Appleton
• Category: Conduit & Fittings
• Item Subcategory: Quick-Connect device / enclosure
• Family: 4Q Series
• Trade Size: 3/4 inch
• Type: Straight
• Material: Zinc Electroplated Malleable Iron Body/Nut, Zinc Electroplated Steel Ferrule
• Hub: Tapered Threaded Male NPT
• Approvals: UL Listed (UL 514-B), CSA Certified (C22.2 No. 18)
• Standards: NEMA FB-1, Fed Spec W-F-406E
• Application: Liquidtight Flexible Metal Conduit (LFMC)
• Performance: Liquidtight, Raintight, Oiltight, Concretetight
• Product Series: 4Q Grounding
• Family Series: Appleton Fittings, 4Q Grounding Series
• Description: 3/4 IN STR CONN LFMC W/LUG
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Hub
• Angle: Straight
• Hub Size: 3/4 "
• Hub Type: Male NPT Thread
• Grounding: Yes
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA 4, NEMA FB1
• Hazardous Location: Yes
• CSA: UL
