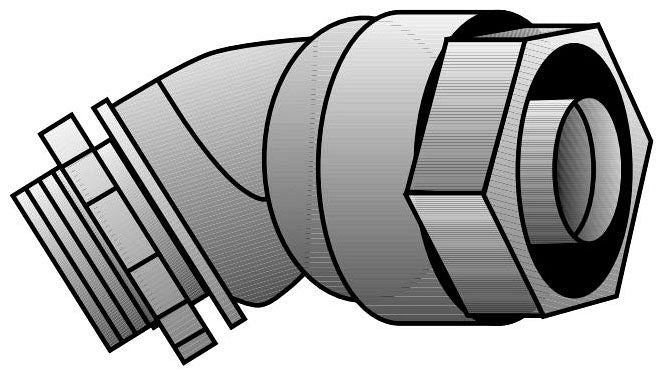

Appleton 4Q-475T 3/4 in 45-degree Insulated Liquidtight Connector

Product Description

The APPLETON 4Q-475T is a 3/4 inch 45-degree insulated liquidtight conduit connector designed for use in wet, oily, or corrosive environments where a secure, moisture-resistant conduit termination is required. This fitting provides a watertight seal at the point where flexible liquidtight conduit meets an enclosure, junction box, or panel knockout. The angled body allows routing in tight spaces or along surfaces where a straight connector would create excessive conduit stress. Licensed electricians and industrial maintenance technicians install this type of connector as part of code-compliant conduit installations.

This connector is suited for commercial, industrial, and residential electrical installations where flexible liquidtight conduit is terminated at motors, HVAC equipment, pumps, compressors, and control panels. The 45-degree angle is particularly useful when conduit must change direction close to an enclosure entry point, reducing bend stress on the conduit jacket and maintaining a clean, serviceable installation.

Key Features

• 3/4 inch trade size fits standard 3/4 inch liquidtight flexible metal or nonmetallic conduit
• 45-degree body angle allows close-clearance routing without over-bending conduit
• Insulated throat protects wire insulation at the point of entry
• Liquidtight design provides a moisture-resistant seal at the conduit termination
• Suitable for use in wet, oily, and corrosive location applications

Compatibility

Designed as an OEM-style fitting for use with 3/4 inch liquidtight flexible conduit systems in standard electrical enclosure knockouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 350 for liquidtight flexible metal conduit or Article 356 for liquidtight flexible nonmetallic conduit. De-energize all circuits before beginning conduit termination work. Hand-tighten the locknut to seat the connector, then snug with a strap wrench or smooth-jaw pliers — do not use serrated tools that could damage the fitting body. Verify the insulated throat is seated properly before pulling wire.

Technical Specifications

• Trade Size: 3/4 inch
• Body Angle: 45 degrees
• Throat: Insulated
• Connection Type: Liquidtight conduit connector
• UPC: 78312661840

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-475T
