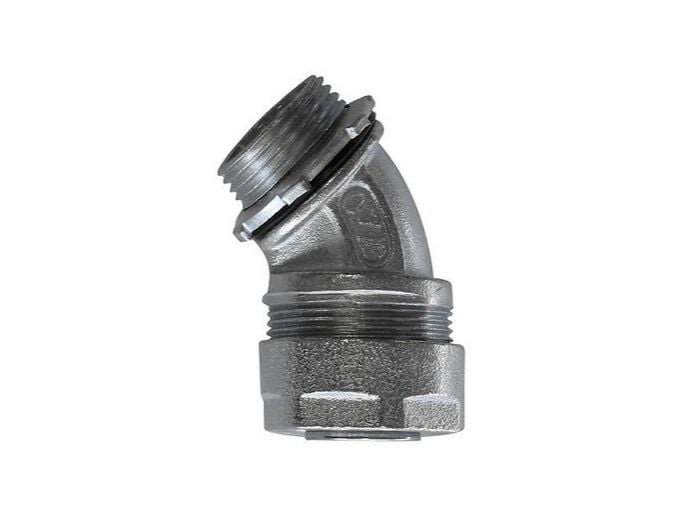

Appleton 4Q-475 Fittings 3/4 IN 45 DEG

Product Description

The APPLETON 4Q-475 fittings are part of the 4Q 45 series. These 3/4 IN 45 DEG connectors are liquidtight and designed for use with flexible metallic conduit (FMC). They feature a positive grounding type and are furnished with a locknut and KO sealing ring. UL Listed NEMA Type 4 when installed into a NPT threaded entry or UL Listed conduit hub.

• Positive grounding type
• Grounding lug is cast as an integral part of malleable iron gland nut providing high ground fault withstand capability
• Long ferrule prevents pull-out and tight bend conduit pop-out

Product Highlights

Appleton 4Q Series 45 Degrees grounding liquidtight connectors secure, ground, and seal liquidtight flexible metal conduit and terminate bonding conductor runs externally alongside liquidtight.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-475

Technical Specifications

• Manufacturer Part Number: 4Q475LT
• Manufacturer: Appleton
• Product Series: 4Q 45
• Family Series: Appleton Fittings, 4Q 45 Series
• Description: 3/4 IN 45 DEG CONN LFMC W/LUG
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Hub
• Angle: 45 °
• Trade Size: 3/4 "
• Hub Size: 3/4 "
• Hub Type: Male NPT Thread
• Grounding: Yes
• Insulated Throat: Yes
• Jacketed: No
• Material: Malleable Iron
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA 4
• Hazardous Location: Yes
• Approvals: CSA, UL
