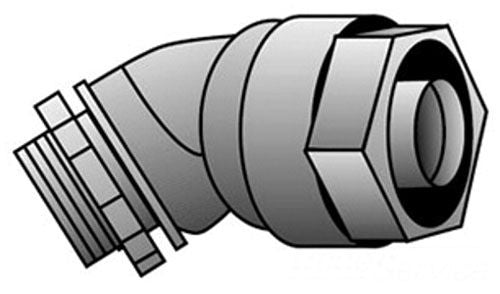

Appleton 4Q-4125 45-degree Liquidtight Conduit Connector

Product Description

The APPLETON 4Q-4125 is a 45-degree liquidtight conduit connector designed for use with liquidtight flexible metal conduit (LFMC). This fitting provides a secure, watertight transition between flexible conduit and an electrical enclosure or junction box. The 45-degree angle body allows installers to route conduit cleanly in tight spaces where a straight connector would create excess bend stress on the conduit. At 1-1/4 inch trade size, it suits medium-to-large circuit runs commonly found in industrial, commercial, and mechanical room installations. Licensed electricians are the primary installers of this fitting.

This connector is suited for use in wet, oily, or corrosive environments where liquidtight protection is required. Typical applications include motor terminations, HVAC equipment connections, pump panels, and other installations requiring flexible conduit entry into enclosures. The 45-degree body is especially useful when conduit approaches a knockout from an offset angle or when clearance above the box is limited.

Key Features

• 45-degree angle body for clean routing in space-constrained installations
• 1-1/4 inch trade size fits standard LFMC of the same trade size
• Liquidtight design provides a watertight seal at the conduit-to-enclosure connection
• Compact form factor with overall dimensions of 4.9 inches x 4.6 inches x 1.35 inches
• Lightweight at 0.77 pounds for easy single-hand installation

Compatibility

Designed as an OEM-style fitting for use with 1-1/4 inch trade size liquidtight flexible metal conduit in standard electrical enclosure knockouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits and lock out the panel before making conduit terminations at any enclosure. Use the appropriate locknut and bushing at the enclosure knockout to ensure a secure, code-compliant connection. Do not overtighten the compression nut, as excessive force can damage the conduit jacket or connector sealing components.

Technical Specifications

• Trade Size: 1-1/4 inch
• Angle: 45 degrees
• Dimensions (L x W x H): 4.9 inches x 4.6 inches x 1.35 inches
• Weight: 0.77 pounds
• UPC: 78312661885

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-4125
