Appleton 4Q-4100T 1 in 45 Degree Insulated Liquidtight Connector

Product Description

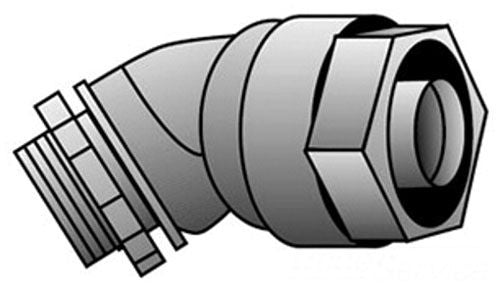

The APPLETON 4Q-4100T is a 1-inch 45-degree insulated liquidtight conduit connector designed for use in electrical conduit systems where angled entry and moisture protection are required. This fitting creates a secure, insulated transition between liquidtight flexible metal conduit and an electrical enclosure, junction box, or panel. The 45-degree body angle reduces bending stress on the conduit and helps route runs in tight spaces. The insulated throat protects wire insulation from abrasion at the point of entry. Licensed electricians and electrical contractors install this type of fitting in industrial, commercial, and utility applications.

This connector is suited for installations where liquidtight flexible metal conduit terminates at a box or enclosure at a 45-degree angle rather than straight in. Typical applications include motor connections, HVAC equipment wiring, pump panels, and other locations exposed to moisture, oils, or mechanical vibration. The insulated throat is appropriate where wire protection at the conduit termination point is required by code or specification. Conduit sizes and angle configurations should be confirmed against the project drawings before installation.

Key Features

• 1-inch trade size fits standard 1-inch liquidtight flexible metal conduit
• 45-degree body angle allows angled conduit entry without bending the conduit sharply
• Insulated throat protects conductor insulation at the point of entry
• Liquidtight design helps resist moisture intrusion at the conduit termination
• Compact profile at 5.5 x 5.3 x 0.7 inches fits in space-constrained enclosure knockouts

Compatibility

Designed as an OEM-style fitting for use with 1-inch liquidtight flexible metal conduit systems in standard electrical enclosures and junction boxes accepting 1-inch knockouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and lock out the panel before beginning any conduit termination work. Hand-tighten the connector body into the knockout before using a locknut wrench to secure the fitting without overtightening. Verify that the insulated throat is seated properly and that no conductor insulation is pinched at the point of entry after pulling wire.

Technical Specifications

• Trade Size: 1 inch
• Body Angle: 45 degrees
• Connector Type: Insulated Liquidtight
• Dimensions (L x W x H): 5.5 x 5.3 x 0.7 inches
• Weight: 0.48 pounds
• UPC: 78312661880

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: 4Q-4100T
